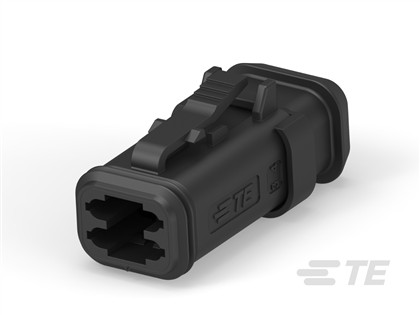

DT06-4S-CE04

Products found: 0

Supplier:

TE Connectivity / Deutsch Automotive

Part No:

DT06-4S-CE04

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

MX

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

1

Width:

.814 in, 20.88 mm

Number of Rows:

2

Degree of Protection:

IP68 , IP6K9K

Connector System:

Wire-to-Wire

Hybrid Connector:

No

Body Material:

PA GF

Sealable:

Yes

Centerline (Pitch):

.175 in, 4.45 mm

Packaging Method:

Box

Strain Relief:

Add By Accessory

Nominal Voltage Architecture:

12 V, 24 V, 48 V

Row-to-Row Spacing:

.359 in, 9.12 mm

Operating Temperature Range:

-55 – 125 °C, -67 – 257 °F

Terminal Position Assurance:

Yes

Blank Cavity Position:

0

Operating Voltage:

250 VAC

Serviceable:

Yes

Connector & Housing Type:

Housing for female terminals

Contact Current Rating (Max):

13 A

Connector Position Assurance Capable:

No

Cable Exit Angle:

180 °

Operating Temperature (Max):

125 °C, 257 °F

Mounting Feature:

Without

UL Flammability Rating:

12mm Flame Test per Standard UL-94

Agency/Standard:

SAE J2030

Number of Positions:

4

Length:

1.701 in, 43.21 mm

Primary Locking Feature:

Integrated in Housing

Height:

.773 in, 19.63 mm

Polarized:

Yes

Circuit Application:

Power & Signal

Mating Pin Diameter:

.0625 in, 1.59 mm

Packaging Quantity:

800

Primary Product Color:

Gray
