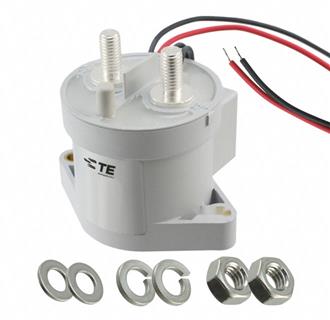

LEV100A4ANG by te connectivity / kilovac brand

LEV100A4ANG

TE Connectivity / Kilovac Brand

Electromechanical Relay 12VDC 26Ohm 100A SPST-NO-DM Flange Contactor Relay ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / Kilovac Brand part LEV100A4ANG is a robust and high-performance electromechanical relay designed for heavy-duty applications. With a voltage rating of 12VDC and a resistance of 26Ohm, this relay is capable of handling high current loads up to 100A. Featuring a Single Pole Single Throw Normally Open configuration, this relay offers reliable and efficient switching functionality. The built-in flange contactor design ensures secure and stable connections, enhancing the overall performance and durability of the relay. Ideal for various industrial and automotive applications, the LEV100A4ANG relay combines superior design and quality materials to deliver exceptional and long-lasting performance. Whether used in power distribution systems, motor controls, or other high-current applications, this relay is a reliable and trustworthy choice.

Product Highlights:

  • Contactor Type = Sealed
  • LEV100 Series
  • DC Actuating System
  • Number of Poles = 1
  • Contact Arrangement = 1 Form X, SPST-NO-DM

Search Keywords: LEV100A4ANG

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Kilovac Brand
Part No:
LEV100A4ANG
RoHS:
Yes
HTS:
8536490065
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Current Rating:
100 A
Contact Arrangement:
SPST-NO-DM
DC Coil Voltage:
12 V
AC Coil Voltage:
N/A
Maximum DC Voltage Rating:
900 V
Maximum AC Voltage Rating:
N/A
Termination Style:
Screw Terminal
Led Indicator:
No
Mounting:
Flange Mount

IN STOCK: 1,402

Ships today, if you order in

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
1
$88.941
5
$85.263
10
$82.616
15
$82.204
25
$80.495
50 +
$78.486
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
