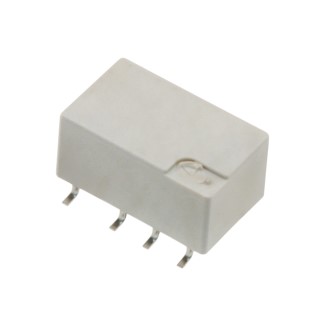

IM03GR by te connectivity / p-b brand
Image is representational - see mfr. specs

IM03GR

TE Connectivity / P&B Brand

Signal Relay - DPDT (2 Form C) - 5VDC Coil - 140 mW Coil Power - 2A Contact - 250VAC/220VDC Switching - Non Latching Coil - Gull Wing. ...

Datasheet
RoHS Compliant
Reel Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The IM03GR is hermetically sealed signal relay with operating temperature range from -40°C to 85°C.

Product Highlights:

  • IM Relay Series
  • DC Actuating System
  • Input Voltage = 5 VDC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 2 Amps.

Search Keywords: IM03GR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
IM03GR
Alias/AKA:
1-1462037-4
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410030
COO:
MX
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1000
Package Type:
Reel
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
DPDT
Maximum Current Rating:
2 A
Mounting:
Surface Mount
Operating Temperature:
-40 to 85 °C
Dimension:
10 x 6 x 5.7 mm
Termination Style:
Gull Wing
Coil Current:
28.1 mA
Contact Form:
2 Form C

IN STOCK: 38,198

Ships today, if you order in

Minimum Order Quantity: 100

Factory Lead-Time 26 Weeks

Price (USD)

Qty
Unit Price
100
$1.31
250
$1.29
500
$1.26
1,000
$1.25
3,000
$1.22
5,000 +
$1.19
Reel Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
