PRD-7AY0-24 by te connectivity / p-b brand

PRD-7AY0-24

TE Connectivity / P&B Brand

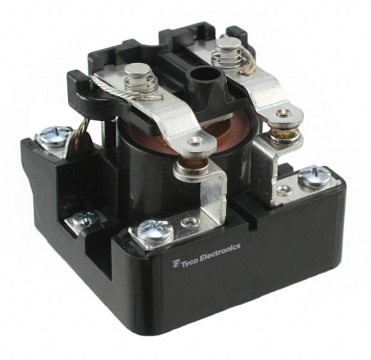

Power Relay - Open Style - 2 form A (2 NO) - 24VAC Coil - 25A Contact Rating - 600VAC/125VDC Switching - Screw Termination - Chassis Mount. ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PRD-7AY0-24 from TE Connectivity / P&B Brand is chassis mount power relay (open style) with 2 form A (2 NO) contact arrangement, 24VAC coil voltage, 410 mA coil current and 12 Ohms coil resistance. This relay has silver (Ag) contacts, 25A contact current rating, 600VAC/125VDC maximum switching voltage and screw termination. Operating temperature range is from -55°C to 45°C.

Product Highlights:

  • PRD Series
  • Contact Arrangement = 2 Form A, DPST-NO, 2 N/O
  • Contact Current Rating = 25 Amps.
  • Monostable Coil Magnetic System
  • Input Voltage = 24 VAC

Search Keywords: PRD7AY024

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
PRD-7AY0-24
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
24 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPST-NO
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 45 °C
  Possible Replacement options available.  See Alternatives

IN STOCK: 436

Can Ship immediately

Factory Lead-Time 18 Weeks

Price (CAD)

Qty
Unit Price
1
$96.105
5
$95.155
10
$94.680
20
$81.021
30
$80.624
40 +
$76.534
Suppliers Standard Package
Log in for special pricing
Click for Quote
