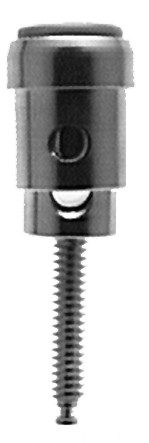

Image is representational - see manufacturer specifications
TE Connectivity / P&B Brand Authorized Distributor

R10-E1Y2-V185

The R10-E1Y2-V185 is a 2-pole, cradle-style signal relay with a 12VDC coil and single silver contacts rated for 2A. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Pack Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

The R10-E1Y2-V185 is a Potter & Brumfield R10 series cradle-style signal relay designed for general-purpose switching. It features a 2 Form C (DPDT) contact arrangement with single silver contacts rated for 2A at 120VAC or 28VDC. The relay is driven by a 12VDC coil with a resistance of 185 ohms and a rated power consumption of 900 mW. Housed in a non-sealed polycarbonate dust cover, it offers solder/plug-in terminals with a #3-48 mounting stud and operates over a temperature range of -55°C to 75°C. This relay is suitable for applications such as audio equipment, traffic controls, and test equipment.

Product Highlights:

  • R10 Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 3 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: R10E1Y2V185

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
R10-E1Y2-V185
Alias/AKA:
4-1393766-0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490050
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
DPDT
Maximum Current Rating:
3 A
Mounting:
Connector
Termination Style:
Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 75 °C
Coil Resistance:
185 Ohm
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 310

Ships today, if you order in

Price (USD)

Qty
Unit Price
1
$152.82
25
$145.17
50
$137.92
88
$131.02
175
$67.30
263
$45.72
350 +
$44.82
