VF4A-15F11-S01 by te connectivity / p-b brand
Image is representational - see mfr. specs

VF4A-15F11-S01

TE Connectivity / P&B Brand

Electromechanical Relay 12VDC 90Ohm 120(NO)/45(NC)A SPDT (( 28mm 33mm 53.2mm)) Plug-In Plug-In Relay Automotive ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Electromechanical Relay 12VDC 90Ohm 120(NO)/45(NC)A SPDT (( 28mm 33mm 53.2mm)) Plug-In Plug-In Relay Automotive

Product Highlights:

  • Nominal Voltage = 12 VDC
  • Rated Current @ 85° C = 40 Amps.
  • Product Category = Plug-In Relays
  • Without Mounting Bracket(s)
  • Contact Arrangement = 1 Form C, SPDT, 1 C/O

Search Keywords: VF4A15F11S01

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
VF4A-15F11-S01
Alias/AKA:
6-1393298-4
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
PT
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
294
Package Type:
Box
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPDT
Maximum Current Rating:
120(NO)/45(NC) A
Mounting:
Connector
Operating Temperature:
-40 to 125 °C
Dimension:
28 x 33 x 53.2 mm
Termination Style:
0.25 Quick Connect
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
RECOMMENDED REPLACEMENT

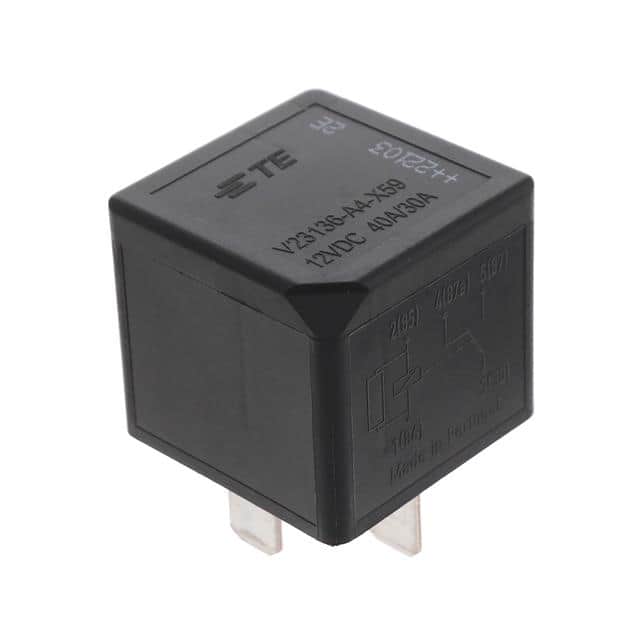

V23136A0004X059-EV-CBOX
V23136A0004X059-EV-CBOX
VIEW PRODUCT
