RA1253

Sta-Con® Nylon-Insulated Fork Terminal - Wire Range #22-#16AWG - Material Copper - Tin-Plated Finish - Color Red - Bolt Hole #10 - Flanged Tongue ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

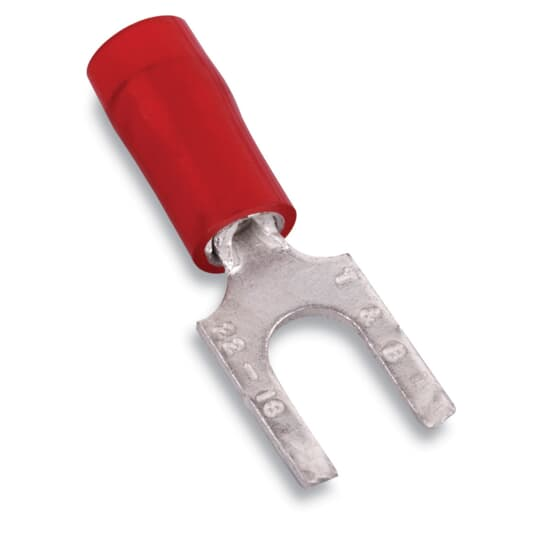

The RA1253 is a nylon-insulated fork terminal for wire range #22 - #16 AWG. Fork terminals enable easy installation because the mounting screw does not have to be completely removed. Length .93 inches, .38 inches width, maximum insulation .136 inches, bolt hole #10. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation. Recommended tool ERG4001.

Product Highlights:

Potential Applications:

Search Keywords: RA1253

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RA1253

RoHS:

Yes

HTS:

8536904000

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
