RA2573

Sta-Con® Nylon Fully Insulated Female Disconnect 250 Series - Wire Range #22-#18AWG - Material Copper - Tin-Plated Finish - Color Red ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

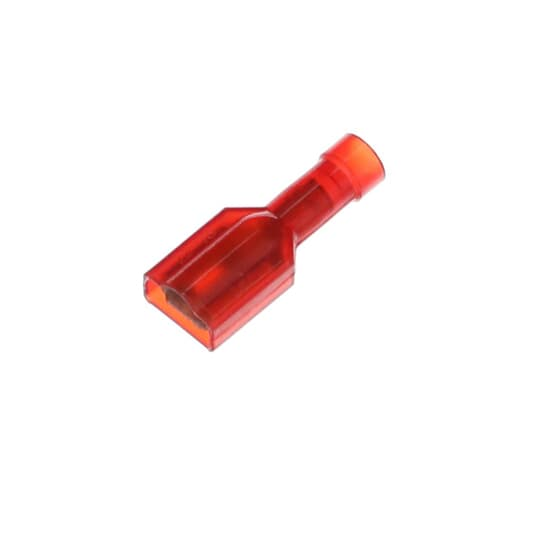

The RA2573 is a nylon fully insulated female disconnect for wire range #22 - #18 AWG. The unique construction of the female disconnect offers long-term dependability. The brazed seam serrated barrel provides maximum tensile strength. Length 1.01 inches, .38 inches width, maximum insulation .165 inches, tab size .250x.032. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation for easy installation. Recommended tool ERG4001.

Product Highlights:

Potential Applications:

Search Keywords: RA2573

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RA2573

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
