RA713

Name: RA713
Brand: Thomas Betts
SKU: 12673241
Price: 59.55 USD
Availability: InStock

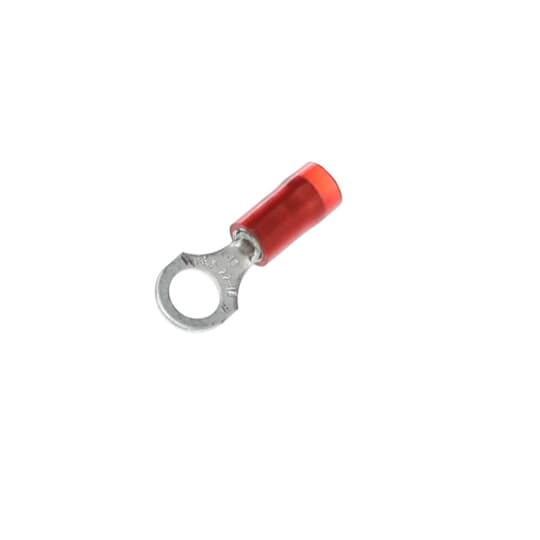

Sta-Con® Nylon-Insulated Ring Terminal - Wire Range #22-#16AWG - Material Copper - Tin-Plated Finish - Color Red - Bolt Hole 1/4 Inch ...

View Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

The RA713 is a ring terminal insulated with high dielectric-strength nylon for wire range #22 - #16 AWG. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Length 1.10 inches, .46 inches width, maximum insulation .136 inches, bolt hole 1/4 inches. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation. Recommended tool WT145A.

Product Highlights:

Potential Applications:

Search Keywords: RA713

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RA713

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99
