RA853

Name: RA853
Brand: Thomas Betts
SKU: 12673267
Price: 46.45 USD
Availability: InStock

Sta-Con® Nylon-Insulated Ring Terminal - Wire Range #22-#16AWG - Material Copper - Tin-Plated Finish - Color Red - Bolt Hole #6 ...

View Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

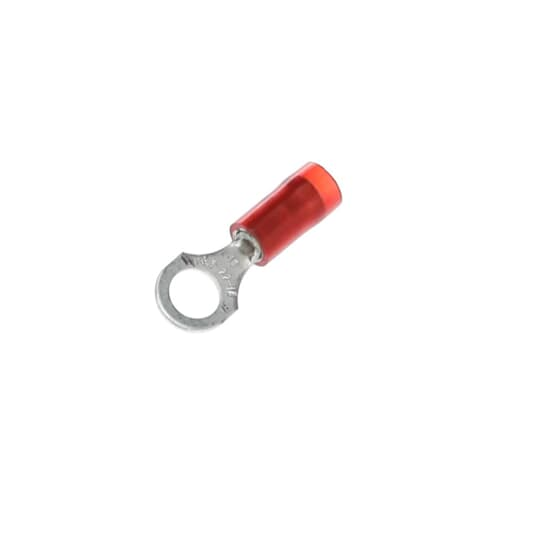

The RA853 is a ring terminal insulated with high dielectric-strength nylon for wire range #22 - #16 AWG. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Length .86 inches, .26 inches width, maximum insulation .136 inches, bolt hole #6. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation. Recommended tool ERG2006.

Product Highlights:

Potential Applications:

Search Keywords: RA853

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RA853

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
