RC333

Name: RC333
Brand: Thomas Betts
SKU: 12673787
Price: 36.78 USD
Availability: InStock

Sta-Con® Nylon-Insulated Ring Terminal - Wire Range #12-#10AWG - Material Copper - Tin-Plated Finish - Color Yellow - Bolt Hole #6 ...

View Datasheet

Ask the Datasheet

RoHS Non-Compliant

Certificate of Compliance

DESCRIPTION

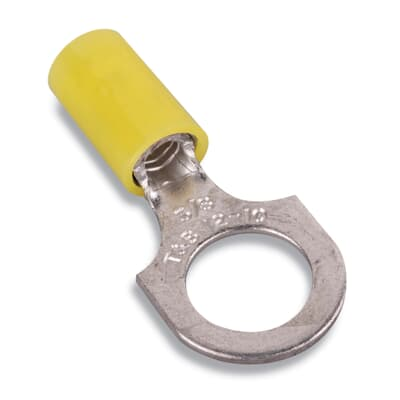

The RC333 is a ring terminal insulated with high dielectric-strength nylon for wire range #12 - #10 AWG. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Length 1.00 inches, .37 inches width, maximum insulation .210 inches, bolt hole #6. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation. Recommended tool ERG4001.

Product Highlights:

Potential Applications:

Search Keywords: RC333

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RC333

Unit of Measure:

Per Each

RoHS:

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
