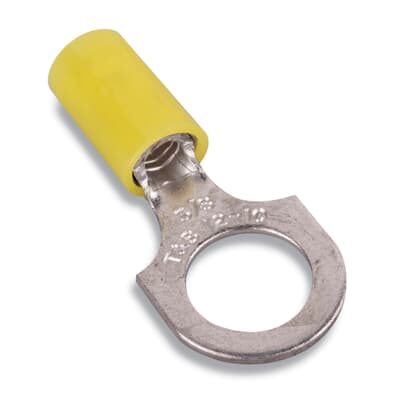

Image is representational - see mfr. specs

RC713

Sta-Con® Nylon-Insulated Ring Terminal - Wire Range #12-#10AWG - Material Copper - Tin-Plated Finish - Color Yellow - Bolt Hole 1/4 Inch ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The RC713 is a ring terminal insulated with high dielectric-strength nylon for wire range #12 - #10 AWG. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Length 1.12 inches, .53 inches width, maximum insulation .210 inches, bolt hole 1/4". The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation. Recommended tool ERG4001.

Product Highlights:

Potential Applications:

Search Keywords: RC713

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RC713

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
