RD717

Name: RD717
Brand: Thomas Betts
SKU: 12673936
Price: 34 USD
Availability: InStock

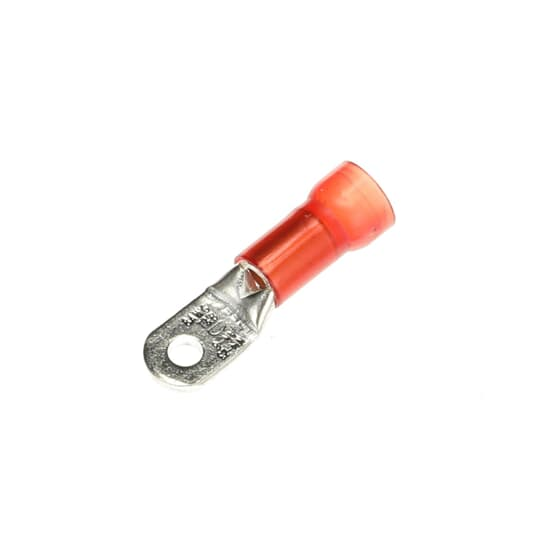

Sta-Con® Nylon-Insulated Large Ring Terminal - Wire Size #8AWG - Material Copper - Tin-Plated Finish - Color Red - Bolt Hole 1/4 Inch - Voltage Rated 600V ...

View Datasheet Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

The RD717 is a large ring terminal insulated with high dielectric-strength nylon for wire size #8 AWG. These ring terminals have funneled barrel entry, deep internal serrations, and brazed or overlapping seams. Length 1.54 inches, .46 inches width, maximum insulation .340 inches, bolt hole 1/4 inches. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation, rated for 105°C max temperature. Installing tool ERG4007.

Product Highlights:

Potential Applications:

Search Keywords: RD717

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RD717

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
