80.010.4005.0 by wieland electric

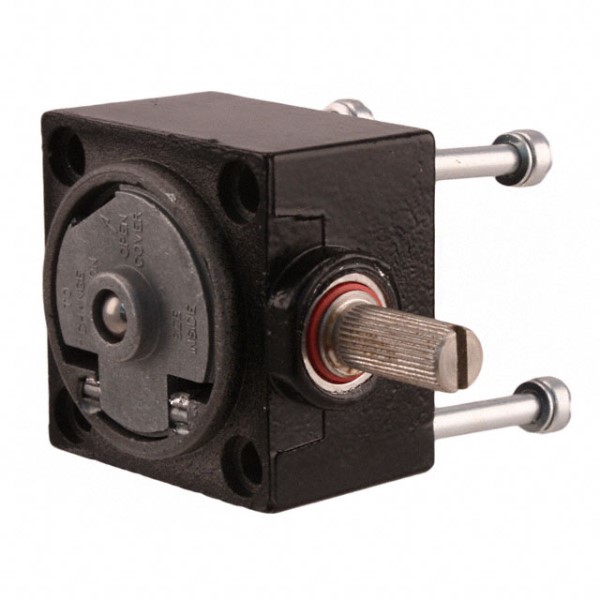

Image is representational - see manufacturer specifications
Wieland Electric Authorized Distributor

80.010.4005.0

Electrical Connections Appliance Terminals ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

The 80.010.4005.0 is a 12 V AC/DC relay module designed for industrial control and switching applications. It features a single changeover contact (SPDT) rated for 250 V AC / 300 V DC at 6 A maximum switching current, with a maximum switching capacity of 1500 VA / 48 W. The module operates with a nominal input current of approximately 14 mA and nominal input capacity of 0.35 W, with a holding current greater than 1.2 mA at 20 °C. It provides fast response with pickup/dropout delays of 8 ms / 10 ms, a chatter time of 2 ms, and supports a maximum switching frequency of 20 Hz. The relay module measures 6.2 mm overall width with dimensions of 6.2 × 89 × 70 mm and is available with screw or spring-clamp terminals. It is suitable for DIN rail mounting (TS35) with IP 20 protection, operates across 0 °C to +50 °C ambient temperature, and includes a green LED status display for operational indication.

Search Keywords: 8001040050

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Wieland Electric
Part No:
80.010.4005.0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
CZ
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 9

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$42.13
5
$37.86
10
$37.77
30
$35.81
50
$33.99
100
$33.91
250 +
$32.75
