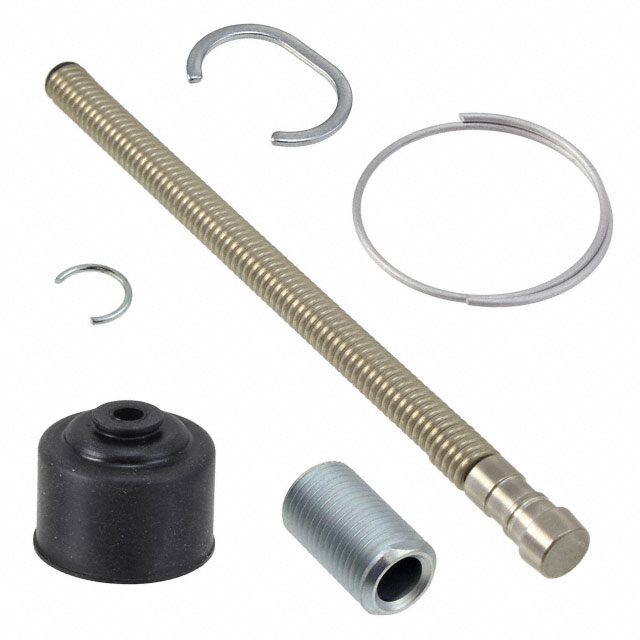

Image is representational - see mfr. specs

96.052.5053.1

Wieland Electric

Conn Circular M 5 POS Screw ST Panel Mount 5 Terminal 1 Port ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 96.052.5053.1 is a male connector (RST2015S S1 M01V SW) designed for industrial device applications with a 5-pole configuration and screw connection type. It is rated for 20A continuous current at 400V with a rated impulse voltage of 4 kV, featuring mechanical coding and interlocking capability for secure mating. The connector utilizes a polyamide housing with silver-plated CuZn contacts, supporting connection cross-sections of 4 mm² for both solid and stranded conductors, with an insulation continuous temperature rating of 100°C. With an M25 connecting thread, straight plug angle, and IP66/68 (3m:2h) and IP69K degree of protection, this connector is well-suited for harsh industrial environments requiring reliable power distribution and signal transmission.

Product Highlights:

Potential Applications:

Search Keywords: 9605250531

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Wieland Electric

Part No:

96.052.5053.1

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
