RECOMMENDED REPLACEMENT
0D.204.4027.5
0D.204.4027.5

In Stock: 0

Minimum Order: 2

VIEW PRODUCT
Z7.261.2027.0 by wieland electric

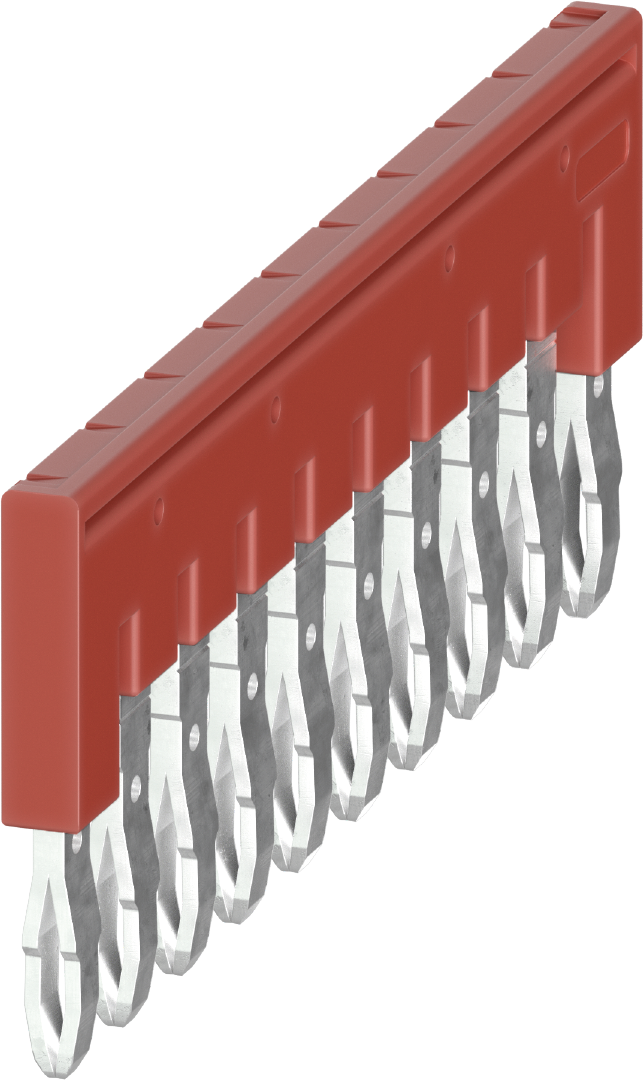

Image is representational - see manufacturer specifications
Wieland Electric Authorized Distributor

Z7.261.2027.0

The Z7.261.2027.0 is a 10-pole, insulated cross connector (jumper bar) for potential commoning in fasis WKF 4 series terminal blocks. ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The Z7.261.2027.0 is a 10-pole insulated cross connector, also known as a jumper bar, designed for potential commoning within Wieland's fasis WKF 4 series terminal blocks. This accessory allows for the quick and safe connection of up to ten adjacent terminal blocks, such as the WKF 4 D1/2/35. As part of the IVB WKF 4 series, it is fully insulated and touch-safe, which eliminates the need for partition plates between jumpered groups of different potentials. It is engineered to carry the same rated current as the terminal block it is used with, up to 35 A and 800 V. Its pluggable design saves significant time during wiring and assembly, providing a reliable solution for creating common potential circuits in control cabinets and distribution panels.

Search Keywords: Z726120270

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Wieland Electric
Part No:
Z7.261.2027.0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536690090
COO:
DE
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
20
Type:
Jumper
Pitch:
N/A
Number of Contacts:
10
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered

Tools/3D Models

Product Guides
