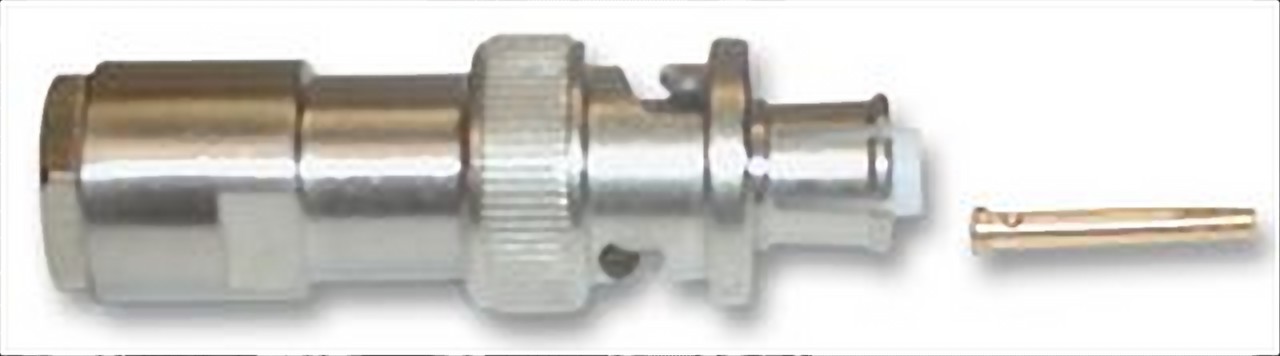

1705-14 by winchester/kings
Image is representational - see manufacturer specifications
Winchester/Kings Authorized Distributor

1705-14

RF Coaxial SHV Plug Straight Male - 300 MHz - Nickel ...

View Datasheet
RoHS Non-Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

1705-14 is a straight, male, SHV bulkhead jack with a frequency of 300MHz. Nominal impedance is non-constant and voltage rating is 3500Vrms. Insulator is made of teflon; gasket is silicone rubber; spring washer and outer/center contacts are berrylium copper; all other metal parts are brass. Center contact is in gold plating finish;spring washer is silver plated; and all other metal parts are in Kings tarnish resistant finish. This product has quick connect & disconnect bayonet coupling design. Outer contact ground connection is maintained through the center contact mating cycle. Recessed center contacts prevent shock hazards while unmated.

Search Keywords: 170514

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Winchester/Kings
Part No:
1705-14
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694010
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Type:
SHV
Impedance:
N/A
Operating Frequency:
N/A
Gender:
PL
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
N/A
Operating Temperature:
N/A
Dimension:
46.73 x 13.97 mm

IN STOCK: 30

Can Ship immediately

On Order: 250   can ship 12/28/26

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$101.98
5
$92.74
10
$83.36
20
$80.11
50
$76.86
100 +
$76.67
Supplier's Standard Package
