AH30020

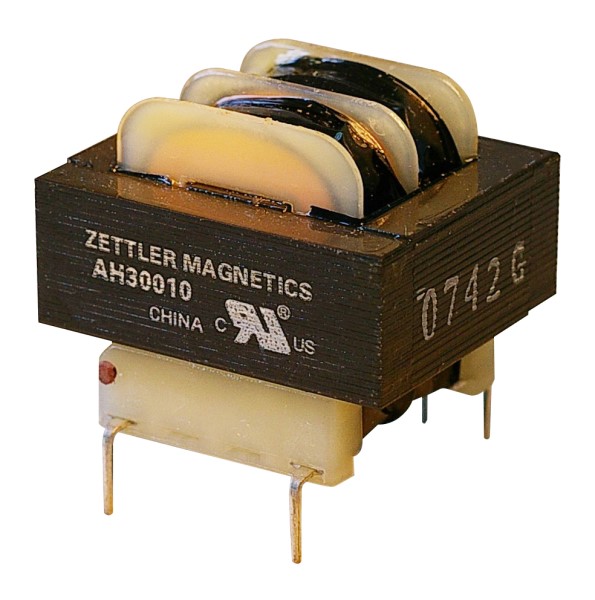

The AH30020 is a 2.5VA split-bobbin power transformer with a 115V primary and dual secondary windings. ...

View Datasheet Ask the Datasheet
RoHS Compliant
TUBE Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The AH30020 is a 2.5VA power transformer from the AH300 series, designed for a 115V, 50/60Hz input. It features versatile dual secondary windings that can be connected in series to deliver 20Vac at 120mA, or in parallel to provide 10Vac at 240mA. This transformer incorporates a split-bobbin design for high isolation, a Class B insulation system, and a dielectric strength of 2500Vrms. As a UL-approved component, it is suitable for a wide variety of general power applications requiring reliable voltage conversion.

Search Keywords: AH30020

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Zettler Magnetics
Part No:
AH30020
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504314035
COO:
VN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Package Type:
TUBE
Primary Configuration:
Single
Primary Side Voltage:
115 V
Secondary Configuration:
Dual
Secondary Side Voltage:
20,10 V
Secondary Side Current:
120,240 mA
Power Rating:
2.5 VA
Mounting:
Through Hole
Dimension:
35.5 x 30 x 30.5 mm

IN STOCK: 500

Ships today, if you order in

MOQ for In Stock Qty: 10

MOQ for out of Stock Qty: 510

Multiple: 10

Factory Lead-Time 16 Weeks
