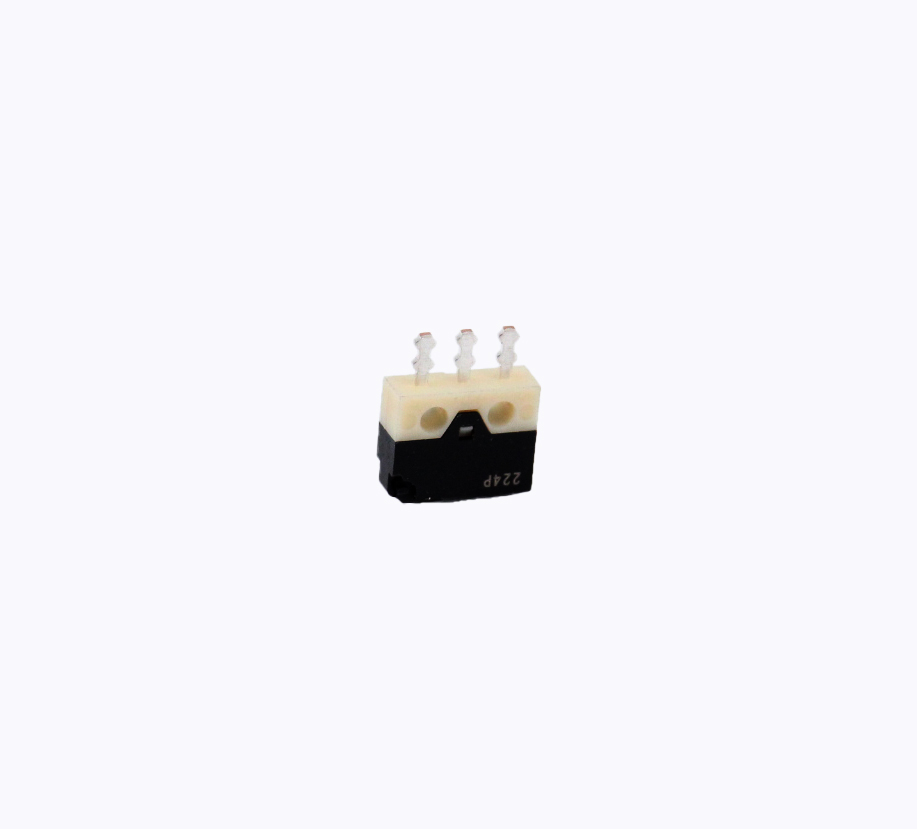

DHGC-B1LA by zf electronic systems

DHGC-B1LA

ZF Electronic Systems

The DHGC-B1LA is an ultraminiature Single Pole, Double Throw (S.P.D.T.) switch with an auxiliary actuator, designed for low-current applications. ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The DHGC-B1LA is an ultraminiature S.P.D.T. switch designed for low current and voltage applications. It is rated for a switching current of 5 to 500mA at a maximum of 30V DC. This model features an auxiliary actuator, straight solder terminals, and a maximum operating force of 50cN. It offers a high mechanical life of over 50,000 operations and an electrical life exceeding 30,000 operations at maximum load. Due to its compact dimensions and reliable performance across a -25°C to +85°C temperature range, it is well-suited for various circuit board applications where space is limited.

Search Keywords: DHGCB1LA

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ZF Electronic Systems
Part No:
DHGC-B1LA
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2000
Package Type:
BOX

IN STOCK: 1,661

Ships today, if you order in

Minimum Order Quantity: 10

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
10
$3.24
50
$3.10
250
$3.00
500
$2.90
2,000
$2.77
4,000
$2.71
6,000
$2.35
8,000 +
$1.99
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
