E19-00K by zf electronic systems

E19-00K

ZF Electronic Systems

Snap Action Switch - DPDT - Roller - 15A@125/250VAC 2A@48VDC - Quick Connect - Screw Mount ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

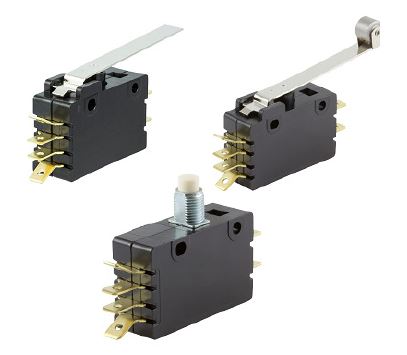

The ZF Electronics Corp part E19-00K is a high-quality Snap Action Switch with a Double Pole Double Throw configuration and a roller actuator. It is capable of handling up to 15A at 125/250VAC and 2A at 48VDC, making it ideal for various industrial applications. The switch features quick connect terminals for easy installation and is designed for screw mounting. Reliable and durable, this switch ensures precise and reliable performance in a variety of settings.

Product Highlights:

  • 5 current ratings
  • Choice of actuator styles
  • 3 terminal types (optional screw terminals available — consult factory)
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature 150°C and 200°C available on select models (consult factory)
  • Includes E19, E19A, E20, E25, E28 and G20 Series.

Search Keywords: E1900K

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ZF Electronic Systems
Part No:
E19-00K
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
336
Package Type:
Box
Mounting:
Through Hole
Pole Throw Configuration:
DPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Steel/Thermoplastic Nylon/Lever
Contact Rating @ Voltage:
1118.55 A
Maximum Movement Differential:
2.36 mm
Operating Force:
2.08 N
Termination Style:
Quick Connect
Dimension:
83.31 x 16.28 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 3,216

Can Ship immediately

MOQ for In Stock Qty: 7

MOQ for out of Stock Qty: 7

Factory Lead-Time 20 Weeks

Price (CAD)

Qty
Unit Price
7
$21.423
50
$14.210
100
$13.750
252
$13.062
504
$12.909
756
$12.710
1,008 +
$12.372
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
