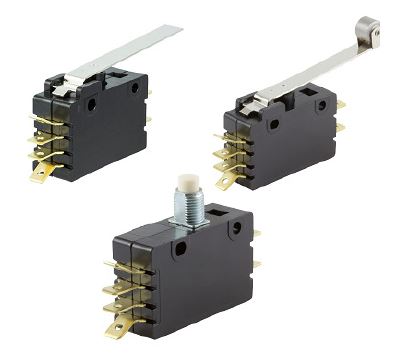

Image is representational - see manufacturer specifications
ZF Electronic Systems Authorized Distributor

E20-50K

Snap Action Switch - DPDT - Roller - 20A@125/250VAC 2A@48VDC - Quick Connect - Screw Mount ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Certificate of Compliance

DESCRIPTION

E20-50K is a double pole 20 A snap action switch featuring a high ratio actuator with roller configuration. It operates at 125/250 VAC with motor ratings of 1 HP at 125 VAC and 2 HP at 250 VAC, and is rated for a minimum of 6000 operations per UL1054. The switch features a long life coil spring snap action mechanism with a phenolic case, thermoplastic actuating button, copper alloy terminals, and stainless steel springs. With the high ratio K actuator, it provides a max operating force of 312 g (0.69 lb), max pre-travel of 13.34 mm (0.525 in), and an operating point of 21.03 ± 1.57 mm (0.828 ± 0.062 in). This RoHS compliant switch is suitable for household appliances, automated assembly lines, brake switches on utility vehicles, industrial door openers, and vending machines.

Product Highlights:

  • 5 current ratings
  • Choice of actuator styles
  • 3 terminal types (optional screw terminals available — consult factory)
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature 150°C and 200°C available on select models (consult factory)
  • Includes E19, E19A, E20, E25, E28 and G20 Series.

Search Keywords: E2050K

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ZF Electronic Systems
Part No:
E20-50K
Alias/AKA:
0E2050K0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
336
Package Type:
BOX
Mounting:
Through Hole
Pole Throw Configuration:
DPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Steel/Thermoplastic Nylon/Lever
Contact Rating @ Voltage:
1491.4 A
Maximum Movement Differential:
1.91 mm
Operating Force:
3.06 N
Termination Style:
Quick Connect
Dimension:
70.89 x 16.28 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 0

MOQ for out of Stock Qty: 252

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
252
$29.29
504
$15.46
756
$10.63
1,008 +
$10.42
