SCHURTER's SHF and SHT Fuse Series and FUS Fuseholder Series

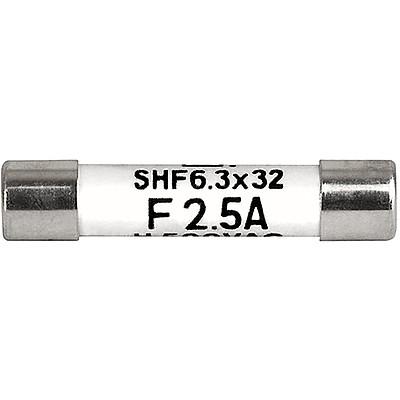

SCHURTER’s high performance SHF and SHT fuses provide higher voltage, overcurrent, and short circuit protection in a universally accepted compact package size 6.3x32 mm. The SHF and SHT fuses offer 16 rated currents from 0.5A to 32A up to 500 VAC/VDC.

  • Quick-Acting…Primary protection up to 500 VAC/VDC. Breaking capacity up to 50kA VAC and 20kA VDC.
  • Time-Lag…Primary protection up to 500 VAC and 400 VDC. Breaking capacity up to 10kA VAC and 20kA VDC.
  • Applications for Fuses: 3-phase systems, Photovoltaic inverter to grid DC to AC or DC to DC, HVAC, Lighting systems, server farms and more.
  • The FUS series shock-safe, snap-in panel mount fuseholder is designed for robust applications and is IP67 weatherproof rated. The FUS is rated 16 A @ 500 VAC (IEC) and up to 32 A @ 600 VAC /VDC (UL/CSA). The fuseholder accepts 5x20 mm or 6.3 x 32 mm fuses.
  • Applications: Equipment exposed to outdoor weather, or oil and chemical, marine, medical, food processing, laboratory and mining environments.
View
Show products manufactured by Schurter
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support Datasheet
Product Guides

93 PRODUCT RESULTS FOR ""

Filter Results

93 Products

    8020.5082.G
    Data Sheet
    8020.5082.G Schurter
    SHF 6.3x32, 25 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse - 1,000 pc quantity
    VIEW PRODUCT
    20 Weeks
    500
    $1.366
    1,000
    $1.024
    1,500
    $0.956
    2,000 +
    $0.937
    8020.5083
    Data Sheet
    8020.5083 Schurter
    SHF 6.3x32, 32 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse
    VIEW PRODUCT
    In Stock: 890
    Ships Immediately
    30
    $2.194
    250
    $1.676
    500
    $1.531
    1,000
    $1.406
    2,500
    $1.371
    8020.5083.G
    Data Sheet
    8020.5083.G Schurter
    SHF 6.3x32, 32 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse - 1,000 pc quantity
    VIEW PRODUCT
    20 Weeks
    500
    $2.182
    1,000
    $1.342
    1,500
    $1.063
    2,000 +
    $1.041
