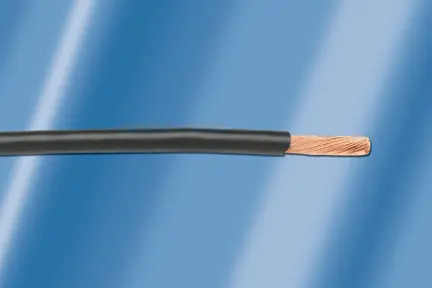

5857-BR005
5857-BR005

In Stock: 1

Minimum Order: 1

VIEW PRODUCT
5857-BR001 by alpha wire
Image is representational - see manufacturer specifications
Alpha Wire Authorized Distributor

5857-BR001

Hook-up Wire 18AWG 1.78mm Silver Plated Copper- Brown - 600V - 304.8m (1000ft)/Spool ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

5857-BR001 is a PTFE-insulated hookup wire designed for high-temperature and high-reliability applications. It features an 18 AWG (19/30) silver-plated copper conductor with a nominal diameter of 0.050 inches and PTFE insulation with a 0.010-inch wall thickness, resulting in an overall insulation diameter of 0.069 ± 0.005 inches. The wire is rated for 600 VRMS and operates over a wide temperature range of -60°C to 200°C, with a maximum pull tension of 14.9 lbs and a recommended bend radius of 10X cable diameter. It meets UL AWM/Style 1213 (VW-1), MIL-W-16878/4 (Type E), and NEMA HP3-EXBHE specifications, and is fully RoHS compliant. This wire is ideal for aerospace, military, and industrial applications requiring excellent thermal stability and electrical performance.

Search Keywords: 5857BR001

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
5857-BR001
Alias/AKA:
5857-BROWN-1000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Size:
18 AWG
Bunch Stranding:
19x30
Conductor Material:
Silver Plated Copper
Cable Diameter:
1.78 mm
Maximum Voltage Rating:
600 V
Operating Temperature:
-60 to 200 °C
Color:
BROWN
  Different packaging options available.  See Alternatives

IN STOCK: 0

Factory Lead-Time 53 Weeks

Price (USD)

Qty
Unit Price
1
$2,114.49
3
$2,058.09
5 +
$2,004.64
