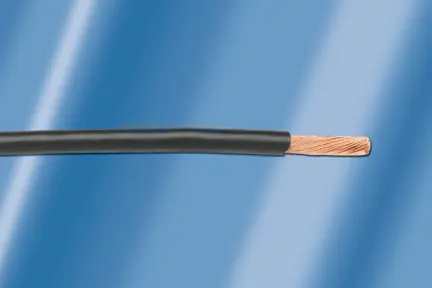

Image is representational - see manufacturer specifications

Alpha Wire Authorized Distributor

5855-YL001

Name: 5855-YL001
Brand: Alpha Wire
SKU: 10128680
Price: 1050.25 USD
Availability: BackOrder

Hook-up Wire 22AWG 1.3mm Silver Plated Copper - Yellow - 600V - 304.8m (1000ft)/Spool ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

The 5855-YL001 is a single-conductor hookup wire designed for high-temperature and high-voltage applications. It features a 22 AWG (19/34) stranded copper conductor with a nominal 0.010" wall PTFE insulation, providing an outer diameter of 0.050" ± 0.005". The wire is rated for 600V RMS and operates reliably across a temperature range of -60°C to 200°C, meeting UL AWM/STYLE 1213 VW-1 and MIL-W-16878/4 (Type E) specifications. With a maximum pull tension of 5.9 lbs and a bend radius of 10× cable diameter, this wire is ideal for laboratory equipment, test instrumentation, and industrial control systems where durability and thermal performance are essential.

Product Highlights:

Potential Applications:

Search Keywords: 5855YL001

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

5855-YL001

Alias/AKA:

5855-YELLOW-1000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

Size:

22 AWG

Bunch Stranding:

19x34

Conductor Material:

Silver Plated Copper

Cable Diameter:

1.39 mm

Maximum Voltage Rating:

600 VAC

Operating Temperature:

-60 to 200 °C

Color:

N/R
