6710-BR001

Alpha Wire

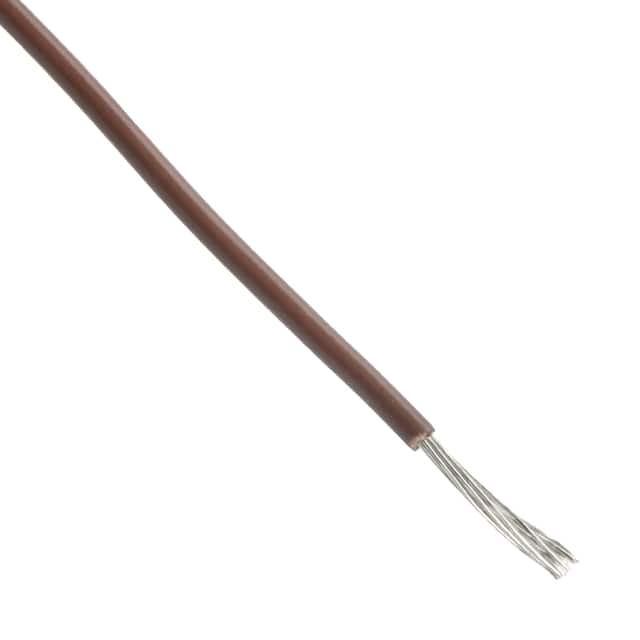

Hook Up Wire - Stranded - 28 (7/36) AWG - 600V - mPPE - Brown - 1000 ft - Tinned Copper ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 6710-BR001 is a single-conductor hookup wire designed for general-purpose electrical applications requiring reliable insulation and flame resistance. It features a 28 AWG (7/36) tinned copper conductor with a 0.0095 inch nominal wall of modified polyphenylene ether insulation, providing an outer diameter of 0.034 ± 0.002 inches. The wire is rated for 600 V RMS at 105°C and meets UL AWM/STYLE 11028 VW-1 and CSA C(RU) AWM I A/B FT1 specifications, with halogen-free construction and compliance with IEC 60332-2 flame behavior standards. It operates reliably across a temperature range of -40°C to 105°C with a maximum pull tension of 1.37 lbs and a minimum bend radius of 10 times the cable diameter. This wire is ideal for internal wiring in electronic equipment, control circuits, and applications where flame resistance and environmental compliance are required.

Product Highlights:

Potential Applications:

Search Keywords: 6710BR001

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6710-BR001

Alias/AKA:

6710-BROWN-1000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
