6713-GY001

Alpha Wire

Hook Up Wire - Stranded - 22 (7/30) AWG - 600V - mPPE - Green/Yellow - 1000 ft - Tinned Copper ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

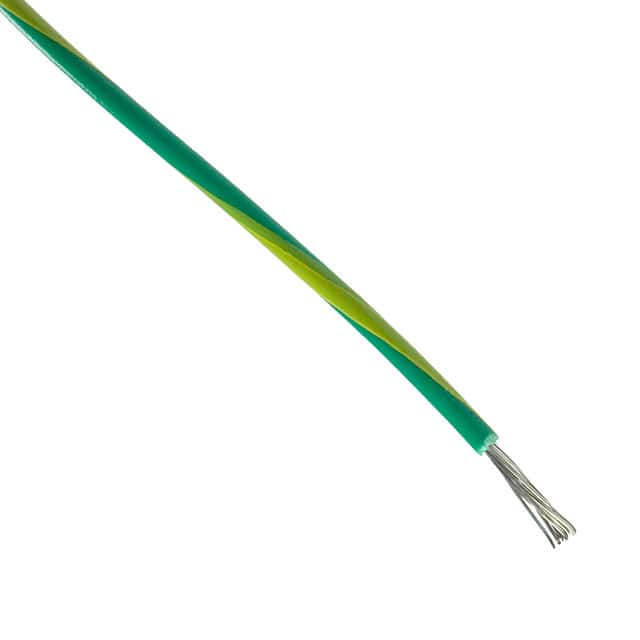

The 6713-GY001 is a single-conductor hookup wire manufactured by Alpha Wire, featuring 22 AWG (7/30) tinned copper conductor with modified polyphenylene ether insulation. The wire is rated for 600V RMS at 105°C and complies with UL AWM/STYLE 11028 VW-1 and CSA C(RU) AWM I A/B FT1 standards, with RoHS and REACH compliance. Key electrical characteristics include a nominal inductance of 0.04 µH/ft and conductor DC resistance of 16.2 O/1000ft at 20°C, while mechanical properties include a temperature range of -40°C to 105°C, a bend radius of 10X cable diameter, and maximum pull tension of 5.5 lbs. This wire is commonly used in general-purpose hookup applications, control circuits, and equipment wiring where reliable insulation and temperature stability are required.

Product Highlights:

Potential Applications:

Search Keywords: 6713GY001

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6713-GY001

Alias/AKA:

6713-GRN/YEL-1000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
