6713-OR005 by alpha wire

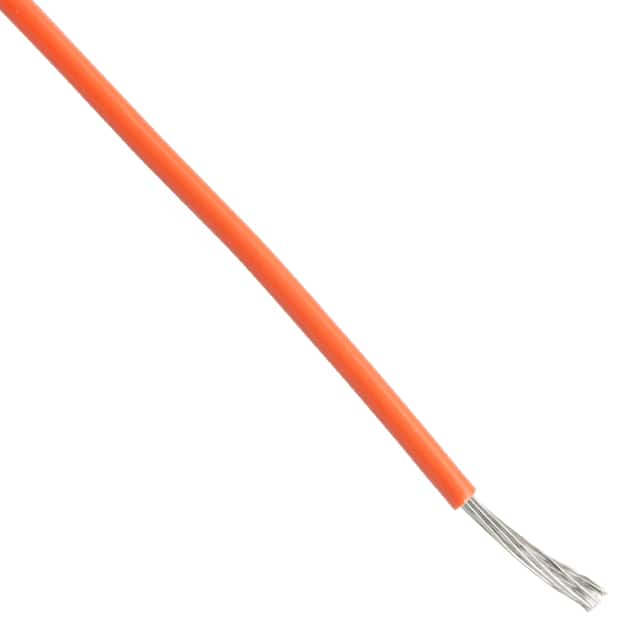

Image is representational - see manufacturer specifications
Alpha Wire Authorized Distributor

6713-OR005

Hook Up Wire - Stranded - 22 (7/30) AWG - 600V - mPPE - Orange - 100 ft - Tinned Copper ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 6713-OR005 is a 22 AWG single-conductor hookup wire designed for general-purpose electronic wiring and interconnection applications. It features a tinned copper conductor (7/30 stranding) with 0.0095 inch nominal wall modified polyphenylene ether insulation, providing a total outer diameter of 0.049 ± 0.002 inches. The wire is rated for 600 V RMS at 105°C and meets UL AWM/STYLE 11028 and CSA C(RU) AWM I A/B FT1 standards with VW-1 flame rating. It exhibits a conductor DC resistance of 16.2 O/1000 ft at 20°C and an inductance of 0.04 µH/ft, with an operating temperature range of -40°C to +105°C and a maximum pull tension of 5.5 lbs. The wire is halogen-free, RoHS-compliant, and suitable for indoor wiring, control circuits, and general interconnection in consumer electronics, industrial equipment, and telecommunications applications.

Search Keywords: 6713OR005

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
6713-OR005
Alias/AKA:
6713-ORANGE-100
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Size:
22 AWG
Bunch Stranding:
7x30
Conductor Material:
Tinned Copper
Cable Diameter:
1.24 mm
Maximum Voltage Rating:
600 V
Operating Temperature:
-40 to 105 °C
Color:
Orange
  Different packaging options available.  See Alternatives

IN STOCK: 0

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
1
$79.58
5
$71.01
10
$68.90
25
$63.23
50
$63.07
100
$61.54
250 +
$59.17
