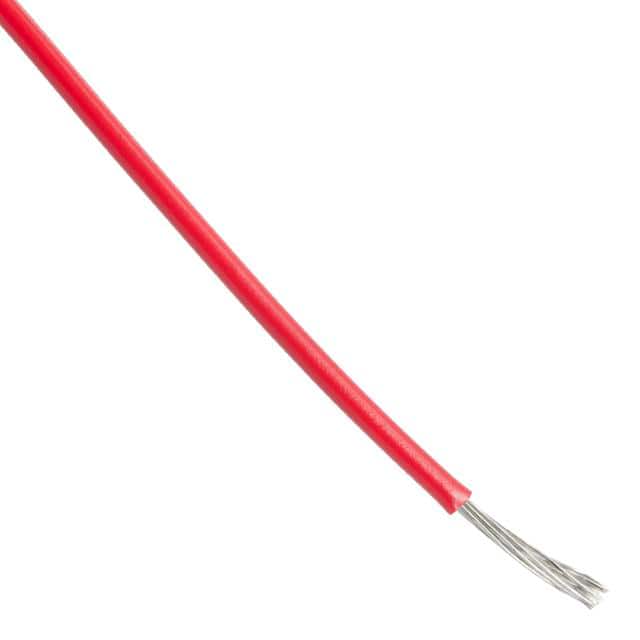

6716-RD005 by alpha wire
Image is representational - see manufacturer specifications
Alpha Wire Authorized Distributor

6716-RD005

Hook Up Wire - Stranded - 16 (26/30) AWG - 600V - mPPE - Red - 100 ft - Tinned Copper ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 6716-RD005 is a single-conductor 16 AWG hookup wire manufactured by Alpha Wire, featuring a tinned copper conductor with 0.011 inch nominal wall modified polyphenylene ether insulation. It is rated for 600 V RMS at 105°C continuous operation and complies with UL AWM/STYLE 11028 VW-1 and CSA C(RU) AWM I A/B FT1 standards. The wire exhibits a conductor DC resistance of 4.4 O/1000 ft at 20°C, an inductance of 0.03 µH/ft, and operates reliably across a temperature range of -40°C to +105°C with a maximum bend radius of 10 times the cable diameter and pull tension rating of 20.4 lbs. This halogen-free, RoHS-compliant wire is ideal for general-purpose electrical interconnections, control circuits, and equipment wiring in industrial, commercial, and consumer applications where flame-retardant performance and environmental compliance are required.

Search Keywords: 6716RD005

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
6716-RD005
Alias/AKA:
6716-RED-100
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Size:
16 AWG
Bunch Stranding:
26x30
Conductor Material:
Tinned Copper
Cable Diameter:
2.06 mm
Maximum Voltage Rating:
600 V
Operating Temperature:
-40 to 105 °C
Color:
Red
  Different packaging options available.  See Alternatives

IN STOCK: 3

Ships today, if you order in

Manufacturer Stock: 20   can ship 11/16/26

Factory Lead-Time 16 Weeks can ship 2/23/27
