AZ943-1CH-24DE by american zettler

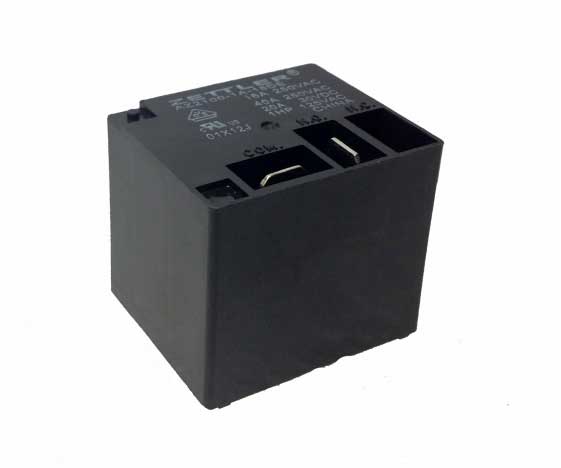

Image is representational - see mfr. specs

AZ943-1CH-24DE

American Zettler

15AMP Mini PC Board Relay 24VDC coil SPDT

Datasheet
RoHS Compliant
Tube Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The AZ943-1CH-24DE is a 15 amp miniature PC board relay with a nominal coil voltage of 24 VDC. The AZ943-1CH-24DE is fully sealed and has a SPDT contact arrangement.

Search Keywords: AZ9431CH24DE

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
American Zettler
Part No:
AZ943-1CH-24DE
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Tube
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPDT10703
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 90 °C
Coil Resistance:
1.6 KOhm

IN STOCK: 10,920

Can Ship immediately

On Order: 38,960   can ship 7/22/26

Minimum Order Quantity: 40

Multiple: 20

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
40
$0.7078
260
$0.5022
1,000
$0.4973
2,500
$0.4923
5,000
$0.4899
7,500
$0.4874
10,000
$0.4850
15,000 +
$0.4826
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes
