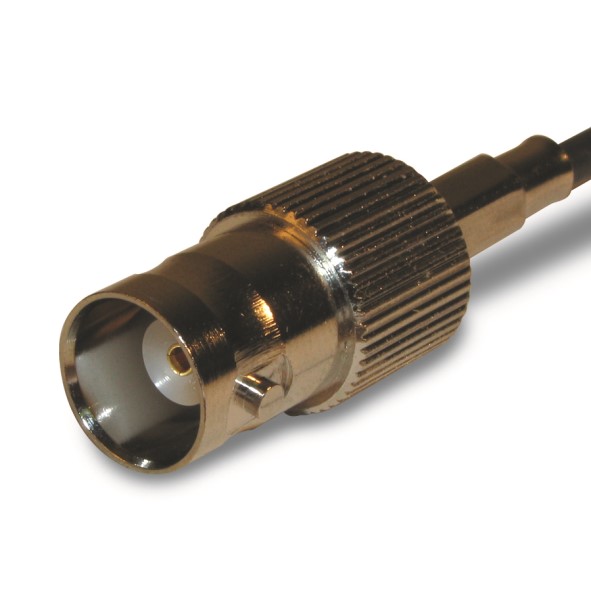

031-317-RFX by amphenol rf
Image is representational - see mfr. specs

031-317-RFX

Amphenol RF

RF Connector BNC Straight Crimp Jack for RG-174 RG-188 50 Ohm ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 031-317-RFX is a BNC 75O straight bulkhead clamp jack connector manufactured by Amphenol RF for commercial-grade RF applications. This connector features a nickel-plated brass body with gold-plated contact, utilizing a clamp/solder termination method suitable for miniature to subminiature coaxial cables. The connector operates across a temperature range of -65°C to +165°C and supports frequencies up to 1 GHz with a nominal impedance of 75O, delivering low insertion loss of 0.2 dB maximum at 3 GHz. The bayonet coupling mechanism provides quick connect/disconnect capability with a coupling torque range of 0.6 to 2.5 in-lbs, and the connector maintains excellent shielding effectiveness of 55 dB minimum at 3 GHz. This connector is ideal for video surveillance, cable television, and other broadband RF applications requiring reliable, compact interconnections.

Search Keywords: 031317RFX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
031-317-RFX
Alias/AKA:
31-317-RFX
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
BNC
Impedance:
50 Ohm
Operating Frequency:
0 to 4 Hz to GHz
Gender:
Jack
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
Crimp
Operating Temperature:
-65 to 165 °C
Dimension:
27.3 x 11.5 mm
  Possible Replacement options available.  See Alternatives

IN STOCK: 202

Ships today, if you order in

Manufacturer Stock: 1   can ship 5/29/26

Minimum Order Quantity: 5

Factory Lead-Time 13 Weeks can ship 8/13/26

Price (USD)

Qty
Unit Price
5
$6.42
50
$4.77
100
$4.49
250
$4.28
500
$3.50
1,000
$2.99
2,500
$2.94
5,000 +
$2.93
