RJR24FW105R by bourns

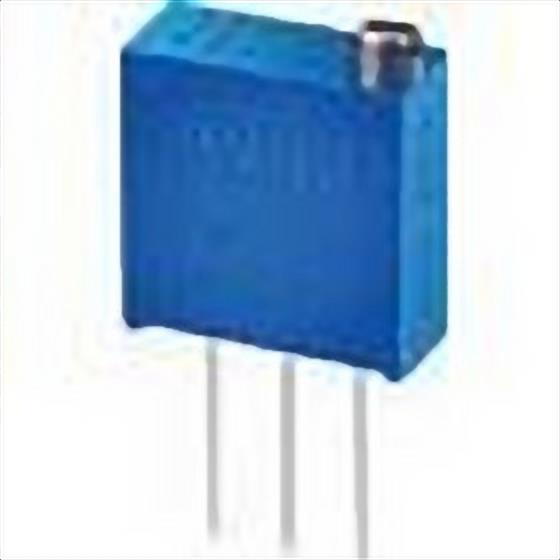

Image is representational - see mfr. specs

RJR24FW105R

Bourns

Res Cermet Trimmer 1M Ohm 10% 0.5W(1/2W) 0.01% 25(Elec)Turns 2.19mm (9.53 X 4.83 X 11.55mm) Pin Thru-Hole Tube ...

Datasheet
RoHS Non-Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

RJR24FW105R is a 3/8" square multiturn trimming potentiometer designed for industrial applications requiring precision adjustment and high reliability. This cermet-element potentiometer features a 1,000,000 ohm (1 MO) resistance value with ±10% tolerance, infinite resolution, and sealed construction meeting MIL-PRF-39035 high-reliability specifications. The device offers exceptional adjustability with voltage accuracy of ±0.01% and resistance accuracy of ±0.05%, supported by an insulation resistance of 1,000 megohms minimum at 500 VDC and dielectric strength of 1,000 VAC at sea level. With 25 turns of effective travel, a temperature coefficient of ±100 ppm/°C, and operating range from -55°C to +150°C, the RJR24FW105R delivers stable performance across demanding environmental conditions. The potentiometer is rated for 0.5 watts at 85°C and 10,000 hours load life at 0.5 watts, making it ideal for precision instrumentation, military electronics, aerospace systems, and other applications where reliability and accuracy are critical.

Search Keywords: RJR24FW105R

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bourns
Part No:
RJR24FW105R
Unit of Measure:
Per Each
RoHS:
No
HTS:
8533408050
COO:
IE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Package Type:
TUBE
Mounting:
Through Hole
Number of Turns:
25(Elec) Turns
Termination Style:
Pin
Power Rating:
0.5 (1/2) W
Resistance Value:
1 MOhm
Tolerance:
10 %
Temperature Coefficient:
±100 ppm/°C
Dimension:
9.53 x 4.83 x 11.55 mm
Operating Temperature:
-55 to 150 °C
Switch Option:
No
Number of Elements:
1

IN STOCK: 138

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 50

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
5
$9.75
10
$9.73
25
$9.70
50
$9.68
100
$7.26
150
$6.78
200 +
$6.64
Suppliers Standard Package
