531302B02500G by boyd laconia llc

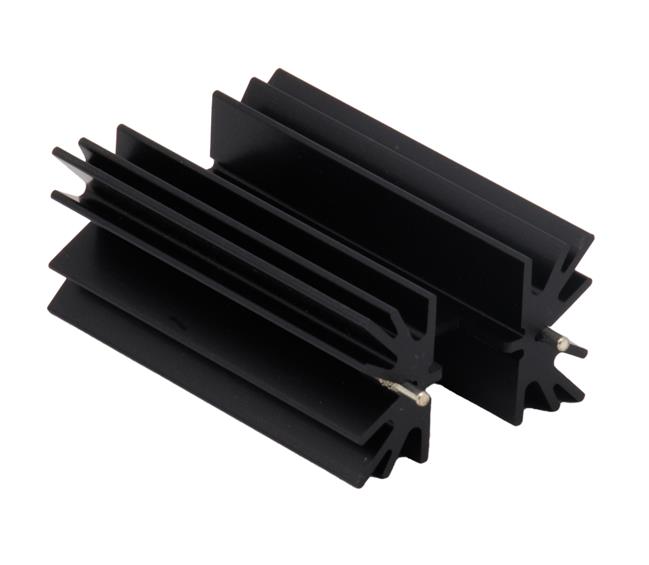

Image is representational - see mfr. specs

531302B02500G

Boyd Laconia LLC

Heat Sink Passive TO-202/TO-220 Radial Thru-Hole Aluminum 8°C/W Black Anodized ...

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

531302B02500G is an extruded aluminum board level heat sink from the Extruded 5310 series, designed to cool TO-202 and TO-220 semiconductor devices. This dual radial heat sink features a black anodize finish and requires a mounting kit for device attachment. The heat sink has dimensions of 34.92 mm width, 12.70 mm length, and 63.50 mm height ("H" dimension), with a vertical mounting direction. Additional mounting dimensions include "X" Dim of 12.70 mm, "Y" Dim of 0.79 mm, and "Z" Dim of 2.67 mm. This RoHS compliant heat sink is ideal for board level thermal management applications requiring efficient heat dissipation from power transistors and voltage regulators.

Search Keywords: 531302B02500G

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Boyd Laconia LLC
Part No:
531302B02500G
Alias/AKA:
041678
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8473305100
COO:
IN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
750
Package Type:
Bulk
Device Cooled:
TO-202,TO-220
Attachment Method:
Solder Pin
Dimension:
34.92 x 12.7 x 63.5mm
Thermal Resistance:
8 °C/W
Finish:
Black Anodized

IN STOCK: 3,987

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
5
$8.65
25
$6.64
50
$6.37
100
$6.08
250
$5.77
750
$5.22
1,500 +
$5.21
