CMB-053-27GNN-W-A by carling technologies

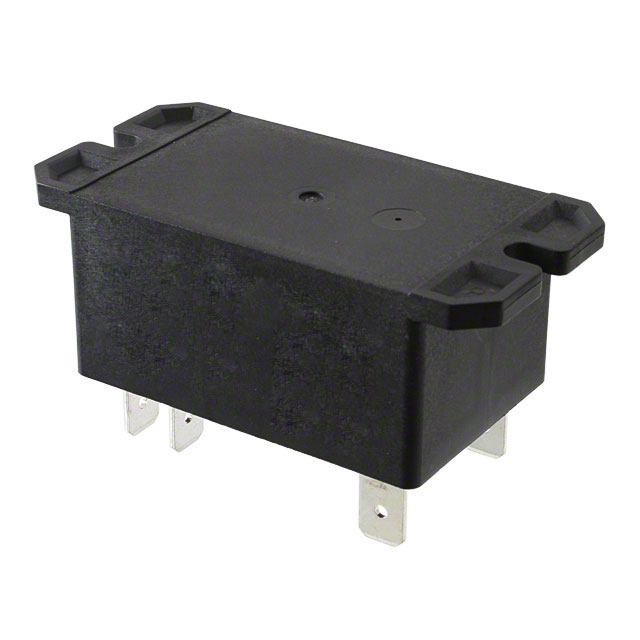

Image is representational - see mfr. specs

CMB-053-27GNN-W-A

Carling Technologies

Circuit Breaker Thermal 1Pole 5A 125VAC/250VAC/32VDC ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The CMB-053-27GNN-W-A is a thermal circuit protector from the CMB-Series, designed as a compact single-pole push-to-reset thermal circuit breaker for overcurrent protection. It is rated for 5 amperes at 125–250VAC or 32VDC, with a dielectric strength of 2500 VAC (1 minute) and an interrupting capacity of 2500 amps at 32VDC. The device features an insulation resistance of 100 megohms, operates across a temperature range of -10°C to +60°C, and maintains a voltage drop below 0.25V. It includes a 3/8" 27 UNS mounting hole (27), white button (W), and screw terminal configuration (G-type mixed terminals with 80° bend load), with an embossed legend indicator plate marked "Suppl. Prot. press to reset." The protector holds approvals from UL, CUL, CSA, TUV, and CE, including UL1500/ISO8846 for marine and ignition protection, and is RoHS compliant. Common applications include household appliances, transportation, marine equipment, power strips, medical devices, audio-visual equipment, and power supplies.

Search Keywords: CMB05327GNNWA

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
CMB-053-27GNN-W-A
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536308000
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Type:
Thermal
Voltage Rating:
125,250,32 VAC|VAC|VDC
Number of Poles:
1
Current Rating:
5 A
Terminal Design:
Quick Connect
Operating Temperature:
-10 to 60 °C
Mounting:
Panel Mount

IN STOCK: 650

Can Ship immediately

Minimum Order Quantity: 40

Multiple: 40

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
40
$3.85
80
$3.78
120
$3.73
280
$3.64
520
$3.56
1,000
$3.46
2,520 +
$3.36
