J114FL2CS812VDC.41 by cit relay and switch

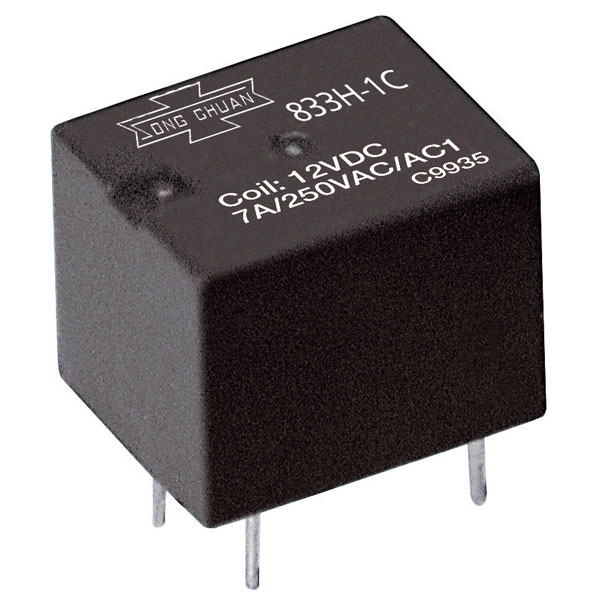

Image is representational - see manufacturer specifications
CIT Relay and Switch Authorized Distributor

J114FL2CS812VDC.41

The J114FL2CS812VDC.41 is a DPDT PC board mount relay with a 12VDC coil and an 8A contact rating. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Tube Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The J114FL2CS812VDC.41 is a DPDT (Double Pole, Double Throw) power relay from the J114FL series, designed for PC board mounting. It operates with a nominal 12VDC coil that consumes 0.41W of power and has a coil resistance of 360Ω. The contacts are rated for 8A at 277VAC or 30VDC, with a maximum switching current of 16A. This sealed relay features a high dielectric strength of 5000V rms between the coil and contacts, a 10ms operate time, and a 5ms release time. Given its wide operating temperature range of -55°C to +125°C and compliance with IEC 60335-1, it is suitable for home appliances, industrial controls, and automation systems.

Search Keywords: J114FL2CS812VDC41

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CIT Relay and Switch
Part No:
J114FL2CS812VDC.41
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
Tube

IN STOCK: 0

On Order: 1,000   can ship 2/5/27

Minimum Order Quantity: 10

Factory Lead-Time 22 Weeks

Price (USD)

Qty
Unit Price
10
$2.77
25
$2.63
50
$2.50
100
$2.37
500
$2.22
1,000
$2.17
2,500 +
$2.06
Log in for special pricing

Tools/3D Models

Product Guides
