3020-06-0300-00 by cnc tech

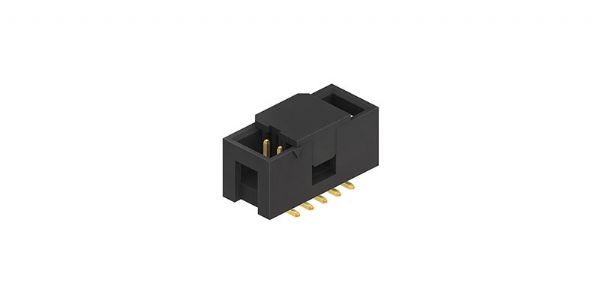

Image is representational - see mfr. specs

3020-06-0300-00

CNC Tech

IDC Box Header - Pitch 0.100" (2.54mm) - 6Pos Low Profile - SMT - Nylon 9T - Flash Gold ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 3020-06-0300-00 is a 2.54mm pitch box header SMD type connector designed for surface-mount PCB applications. It features a 6-position configuration with a current rating of 3.0A AC/DC and voltage rating of 250V AC/DC, making it suitable for general-purpose interconnection in industrial and consumer electronics. The connector employs brass contacts with gold plating for reliable conductivity, housed in a black Nylon 9T (UL94V-0) insulator body. Key electrical characteristics include a maximum contact resistance of 20 mO, insulation resistance of 1,000 MO minimum, and withstanding voltage of 600V AC per minute. Operating temperature range spans -40°C to +105°C, and the product is RoHS compliant. This connector is commonly used in power distribution, signal routing, and modular equipment interconnection where compact, reliable board-level connections are required.

Search Keywords: 302006030000

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CNC Tech
Part No:
3020-06-0300-00
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
180
Package Type:
BOX
  Different packaging options available.  See Alternatives

IN STOCK: 2,774

Can Ship immediately

Minimum Order Quantity: 100

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
100
$0.3919
500
$0.3526
2,160
$0.2774
4,320
$0.2760
6,480
$0.2502
10,800
$0.2329
25,920
$0.2323
51,840 +
$0.2318
