AA59126/2909 by concord

AA59126/2909

Concord

Turret Terminal 5.51mm 2.36mm Electro-Solder Over Copper ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

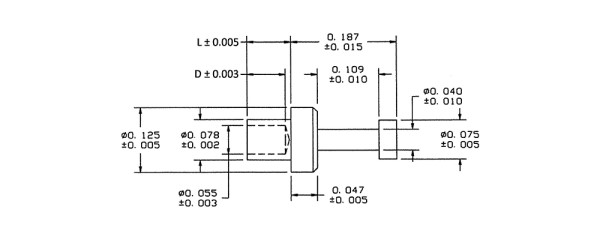

AA59126/2909 is a brass terminal designed for PCB through-hole mounting applications. The terminal is manufactured from brass per ASTM B16, Alloy C 36000 in 1/2 hard temper, providing excellent mechanical strength and electrical conductivity. It features a minimum 0.0003" electro-solder finish per MIL-P-81728 over a minimum 0.0001" copper underplate for reliable solderability. The component is suitable for electronic assemblies requiring durable, solderable terminals with military-grade plating specifications.

Search Keywords: AA591262909

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Concord
Part No:
AA59126/2909
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Turret Terminal
Gender:
N/A
Tab Size:
N/A
Stud Size:
N/A
Dimension:
5.51 x 2.36 mm
Wire Size:
N/A
Color:
N/R
Operating Temperature:
N/A
  Possible Replacement options available.  See Alternatives

IN STOCK: 13

Ships today, if you order in

MOQ for In Stock Qty: 2

MOQ for out of Stock Qty: 2

Factory Lead-Time 3 Weeks

Price (USD)

Qty
Unit Price
2
$21.44
25
$20.37
50
$15.29
75
$14.27
100 +
$13.98
Log in for special pricing Click for Quote Price Match Request
