CD15ED680JO3F by cornell dubilier

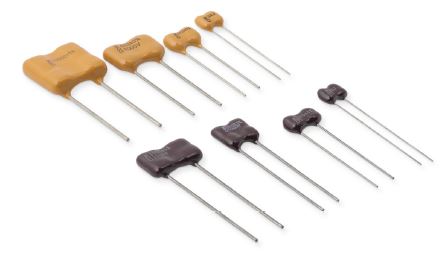

Image is representational - see mfr. specs

CD15ED680JO3F

Cornell Dubilier

Mica Capacitor - Standard Dipped - 68pF (+/-) 5% - 500VDC - -55°C to 125°C - TC= -20 to 100ppm/°C - RoHS ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

CD15ED680JO3F is a standard dipped silvered mica capacitor designed for timing and close tolerance applications requiring stable capacitance over a wide temperature range. This capacitor features a capacitance value of 68 pF with a rated voltage of 1000 Vdc, meeting EIA RS153B dimensional specifications. The device operates across a temperature range of -55°C to +125°C and demonstrates a minimum dV/dt pulse capability of 100,000 V/µs, ensuring reliable performance in demanding electronic circuits. With its high stability and non-flammable construction meeting IEC 695-2-2 standards, this capacitor is widely used in precision timing circuits, RF applications, and other high-reliability electronic systems where capacitance tolerance and temperature stability are critical.

Search Keywords: CD15ED680JO3F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cornell Dubilier
Part No:
CD15ED680JO3F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8532290020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BAG
Family:
CD15
Dimension:
11.4(Max) x 4.6(Max) x 9.1(Max) mm
Lead Pitch For Radial:
5.9 mm
Lead Diameter:
0.6 mm
Construction:
N/A
Capacitance Value:
68 pF

IN STOCK: 1,024

Ships today, if you order in

Manufacturer Stock: 1,800   can ship 6/15/26

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 12 Weeks can ship 8/26/26

Price (USD)

Qty
Unit Price
100
$1.869
300
$1.752
500
$1.656
1,000
$1.347
2,500
$1.079
5,000
$1.029
7,500
$0.999
10,000 +
$0.977
Suppliers Standard Package
