ALTERNATIVE PRODUCTS
Non-RoHS Equivalent
CD15FD201JO3
CD15FD201JO3

In Stock: 8,275

Minimum Order: 100

VIEW PRODUCT
CD15FD201JO3F by cornell dubilier

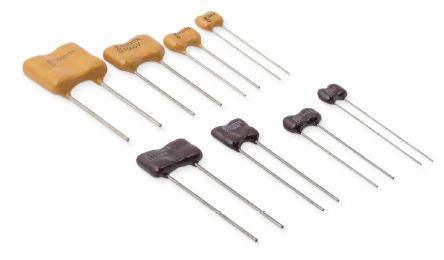

Image is representational - see mfr. specs

CD15FD201JO3F

Cornell Dubilier

Mica Capacitor - Standard Dipped - 200pF (+/-) 5% - 500VDC - -55°C to 125°C - TC= 0 to 70ppm/°C - RoHS ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

CD15FD201JO3F is a standard dipped silvered mica capacitor designed for timing and close tolerance applications requiring stable capacitance over a wide temperature range. This capacitor features a capacitance value of 200 pF with a rated voltage of 500 Vdc, meeting EIA RS153B dimensional specifications. The device exhibits excellent stability with an operating temperature range of -55°C to +125°C, a minimum dV/dt pulse capability of 100,000 V/µs, and capacitance tolerance of ±5% (J-grade). The CD15 package type provides compact dimensions of approximately 0.47 mm length, 0.39 mm height, and 0.21 mm thickness, with a spacing of 0.234 mm and lead diameter of 0.025 mm. These mica capacitors are widely used in precision timing circuits, RF applications, and instrumentation where high stability and low dissipation are essential.

Search Keywords: CD15FD201JO3F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cornell Dubilier
Part No:
CD15FD201JO3F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8532290020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BAG
Family:
CD15
Construction:
N/A
Capacitance Value:
200 pF
Lead Pitch For Radial:
5.9 mm
Lead Diameter:
0.6 mm
Dimension:
11.7(Max) x 4.8(Max) x 9.7(Max) mm

IN STOCK: 1,818

Can Ship immediately

Manufacturer Stock: 1,200   can ship 5/25/26

Minimum Order Quantity: 10

Factory Lead-Time 12 Weeks can ship 8/4/26

Price (USD)

Qty
Unit Price
10
$3.031
100
$2.553
300
$2.535
500
$2.422
1,000
$1.939
2,500
$1.859
5,000
$1.850
7,500 +
$1.841
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
