25622080 by crouzet control
Image is representational - see mfr. specs

25622080

Crouzet Control

Conn Relay Socket SKT 11 POS Solder ST Thru-Hole ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

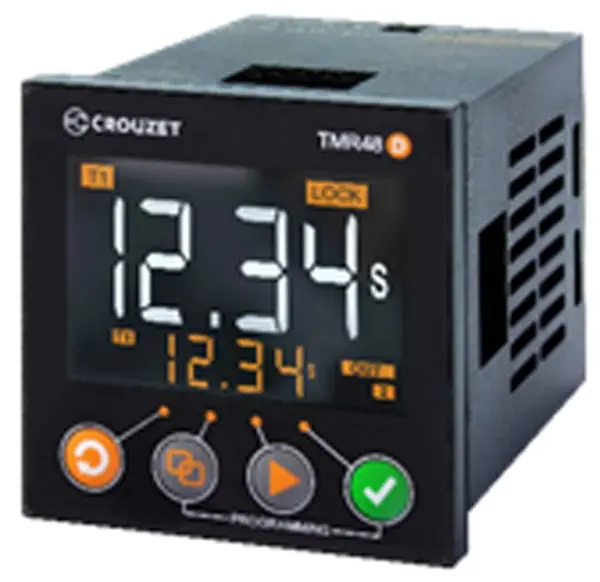

The 25622080 is a socket accessory for DIN rail or panel mount installation with 11-pin plug-in connection, designed for the Crouzet TMR48 D front panel digital timer relay series. This timer relay features a 48×48 mm (1/16 DIN) housing with a large 13.2 mm LCD display and supports multi-range timing from 0.05 seconds to 9999 hours with high precision (±0.03% ± 20 ms VDC / 50 ms VAC). The device operates on 24–240 VAC/DC supply voltage with dual changeover (SPDT) relay outputs rated for 250 VAC / 10 A resistive or 125 VDC / 0.3 A resistive, delivering maximum switching power of 2×2500 VA / 2×300 W. It provides IP66 front-face protection, mechanical life of 10×106 cycles, and operates reliably across -10°C to +60°C, making it suitable for industrial control, automation, and protection applications requiring precise timing and robust switching performance.

Search Keywords: 25622080

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Crouzet Control
Part No:
25622080
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
IT
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Type:
Relay Socket
Number of Contacts:
11
Mounting:
Through Hole

IN STOCK: 92

Can Ship immediately

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
10
$10.65
30
$10.26
50
$9.69
100
$9.06
250
$9.02
500
$8.98
1,000 +
$8.93
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
