RJ1S-C-D24 by idec corporation

RJ1S-C-D24

IDEC Corporation

Electromechanical Relay 24VDC 1.08KOhm 12A SPDT(28.8x12.7x32)mm Socket General Purpose Relay ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The IDEC part RJ1S-C-D24 is an electromechanical relay designed for general purpose applications. It operates on a 24VDC power supply and has a resistance of 1.08KOhm. The relay has a single-pole double-throw (SPDT) configuration, allowing it to switch between two different circuits. With compact dimensions of 28.8x12.7x32mm, this relay can fit into tight spaces. It can withstand a maximum current of 12A, making it suitable for a wide range of industrial and commercial applications. The relay comes with a socket for easy installation, providing a reliable and efficient solution for your electrical switching needs.

Search Keywords: RJ1SCD24

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
IDEC Corporation
Part No:
RJ1S-C-D24
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPDT
Maximum Current Rating:
12 A
Mounting:
Socket
Termination Style:
0.187Quick Connect & PC P in
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 70 °C
Coil Resistance:
1.08 KOhm

IN STOCK: 549

Ships today, if you order in

Minimum Order: 5

Factory Lead-Time 9 Weeks

Price (CAD)

Qty
Unit Price
5
$8.743
50
$6.815
100
$6.492
250
$6.156
500
$5.941
1,000
$5.788
2,500
$5.758
5,000 +
$5.727
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

SJ1S-05BW

Conn Relay Socket SKT 5 POS Screw ST Panel Mount

SJ1S-07LW

Conn Relay Socket SKT 5 POS Solder ST Thru-Hole

SJ1S-61

Conn Relay Socket SKT 5 POS Solder ST Thru-Hole

SJ9Z-JF2

2 Pole Jumpers for SJ Sockets

SJ9Z-JF5

BNDN1000

DIN Rail, 35mm, 1m Long

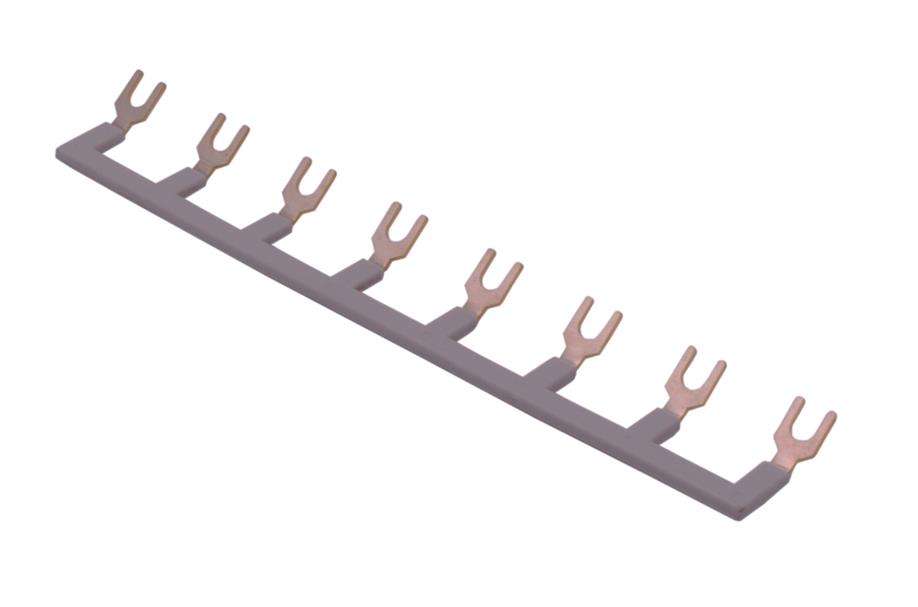

SJ9Z-JF8

8 Pole Jumpers for SJ Sockets

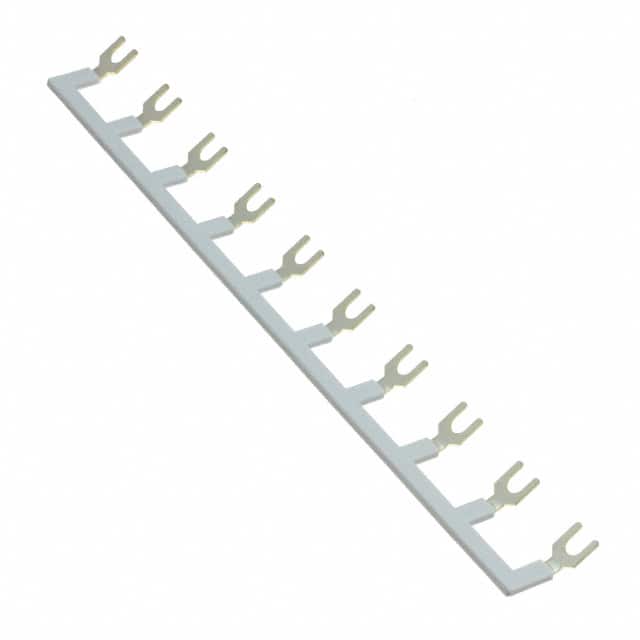

SJ9Z-JF10

Conn Jumper 10 POS ST

SJ9Z-PWPN10
