8800K16 by cutler-hammer / eaton

8800K16

Cutler-Hammer / Eaton

Switch Toggle - ON OFF ON - SPDT - Round Lever - Screw - 25A - 115VAC - 28VDC - Panel Mount with Threads. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

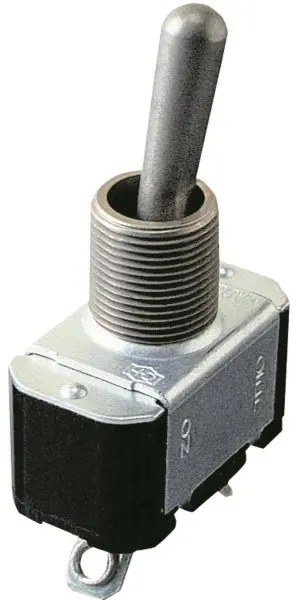

The 8800K16 is a single-pole double-throw (SPDT) military-purpose Toggle Switch with sealed lever and screw terminals. The AC-rated heavy-duty toggle switch has slow-make/slow-break butt contact mechanism and thermoset molding base. The switch mechanism is completely enclosed to resist the entrance of contaminants into the switch. All metal parts are plated to resist corrosion. Circuit designations are stamped on the side of each switch.

Search Keywords: 8800K16

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cutler-Hammer / Eaton
Part No:
8800K16
RoHS:
Yes
HTS:
8536509065
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
25@28VDC A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
28.45 x 15.75 x 55.76 mm
Operating Temperature:
-17.8 to 65.6 °C

IN STOCK: 189

Ships today, if you order in

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
1
$28.335
10
$24.215
25
$23.865
50
$23.742
100
$23.628
250
$23.505
500 +
$23.391
