8810K15 by cutler-hammer / eaton

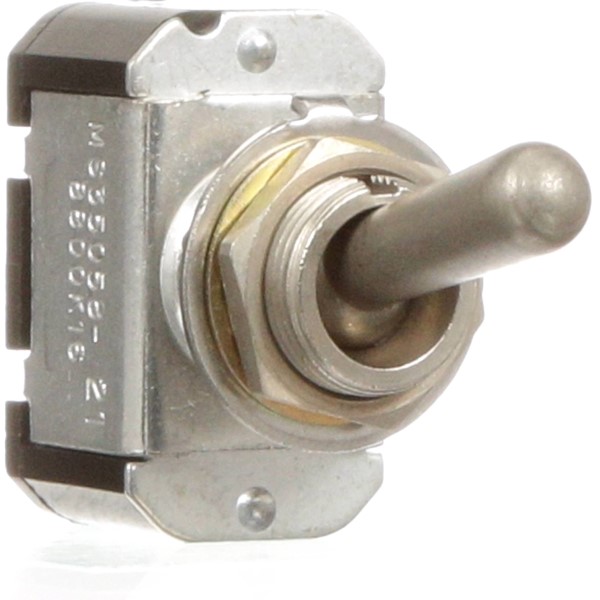

Image is representational - see manufacturer specifications
Cutler-Hammer / Eaton Authorized Distributor

8810K15

Switch Toggle - ON None ON - SPDT - Round Lever - Screw - 25A - 115VAC - 28VDC - Panel Mount with Threads. ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 8810K15 is a single-pole double-throw (SPDT) heavy-duty AC Toggle Switch with brass screw termination and ON-NONE-ON function. The military purpose lever sealed switch has momentary function and thermoset molding base. The switch mechanisms are completely enclosed to resist the entrance of contaminants into the switch and all metal parts are plated to resist corrosion. The switch has silicone rubber lever seal assembled between the lever and the bushing to resist the entrance of contaminants such as dust, sand or water into the contact structure.

Search Keywords: 8810K15

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cutler-Hammer / Eaton
Part No:
8810K15
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536509065
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
On None On
Contact Rating @ Voltage:
25@28VDC A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
28.45 x 15.75 x 55.76 mm
Operating Temperature:
-17.8 to 65.6 °C

IN STOCK: 39

Can Ship immediately

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
1
$33.85
5
$29.30
10
$26.81
25
$25.28
50
$25.21
100
$25.05
250 +
$24.30
Supplier's Standard Package
Log in for special pricing
