AFB0524HHB by delta thermal / emi / solenoids

AFB0524HHB

Delta Thermal / EMI / Solenoids

DC Fans DC Axial Fan - 50x15mm - 24VDC ...

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The AFB0524HHB is a DC Axial Fan Voltage - Rated 24VDC Size / Dimension Square - 50mm L x 50mm H Width 15.00mm Air Flow 16.2 CFM (0.454m³/min) Static Pressure 0.315 in H2O (78.5 Pa) Bearing Type Ball Fan Type Tubeaxial Noise 36.0 dB(A) Power (Watts) 1.92W RPM 6400 RPM Termination 2 Wire Leads Operating Temperature 14 ~ 158°F (-10 ~ 70°C) Approvals CE, CSA, UL, VDE Weight 0.071 lb (32.21g) Current Rating (Amps) 0.080A Voltage Range 14 ~ 27.6VDC Material - Frame Plastic Material - Blade Plastic Lifetime @ Temp. 70000 Hrs @ 40°C

Search Keywords: AFB0524HHB

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Delta Thermal / EMI / Solenoids
Part No:
AFB0524HHB
RoHS:
Yes
HTS:
8414591500
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
672
Package Type:
Bulk
Category:
DC Fan
Dimension:
50 x 50 x 15 mm
Voltage Rating:
24 V
Power Rating:
1.92 W
Maximum Airflow:
16.2CFM
Noise Level:
36 dB
Special Features:
None
Termination:
Lead Wires
Housing Material:
Plastic
Operating Temperature:
N/A

IN STOCK: 1,982

Ships today, if you order in

Minimum Order: 5

Factory Lead-Time 32 Weeks

Price (USD)

Qty
Unit Price
5
$10.630
25
$8.209
50
$7.591
100
$7.097
250
$7.066
672
$7.025
1,344 +
$6.994
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

SC50-W2

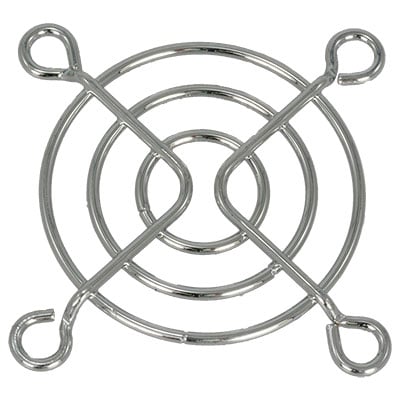

Fan Guard - 40mm Diameter - C1008 Steel - Bright Nickel Chrome Plating - 4 Position Screw ...

HP75-24

45 Degree Fan Cord 24" - 18AWG

HP75-72

72 (1.83 m ) 45 Degree Fan Power Cord"

Show 1 More
