550-3505F by dialight

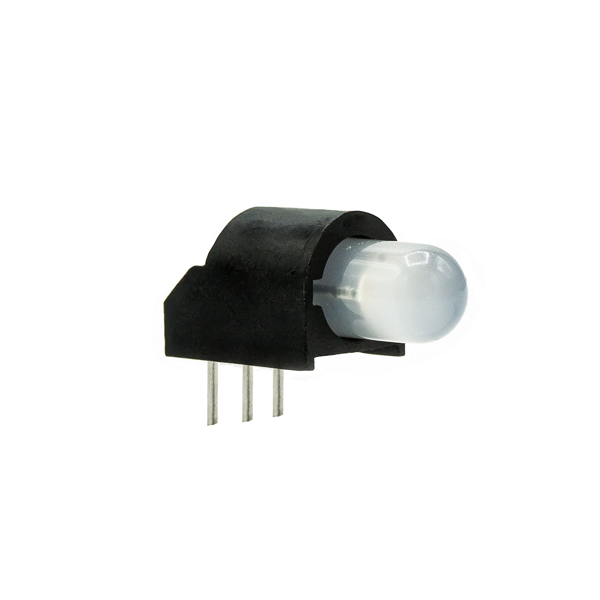

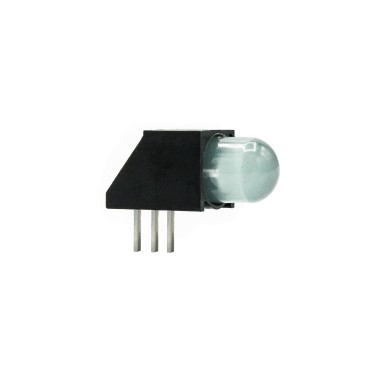

Image is representational - see mfr. specs

550-3505F

Dialight

The 550-3505F is a 3-leaded, 5mm bi-color (Red/Green) circuit board indicator LED. ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 550-3505F is a bi-color LED circuit board indicator that emits red and green light from a single 3-leaded package. This component features a red LED with a typical forward voltage of 2.1V and a green LED with a typical forward voltage of 2.3V, both at a forward current of 10mA. It provides a typical luminous intensity of 2.1 mcd for red and 4.2 mcd for green, with a shared 65-degree viewing angle. The device operates reliably across a temperature range of -20°C to +85°C. With its common cathode configuration and right-angle housing, this indicator is ideal for providing status feedback on printed circuit boards in various electronic applications.

Search Keywords: 5503505F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
550-3505F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541402000
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BAG
Dimension:
7.24(Max) x 14.15 x 7.24(Max) mm
Category:
Standard LED
Dominant Wavelength:
N/A
Color Temperature:
N/A
Color:
Green/Red

IN STOCK: 1,146

Can Ship immediately

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
100
$1.077
300
$1.035
500
$1.012
1,000
$1.005
2,500
$1.000
5,000
$0.997
7,500
$0.995
10,000 +
$0.992
Suppliers Standard Package
