550-3507-010F by dialight

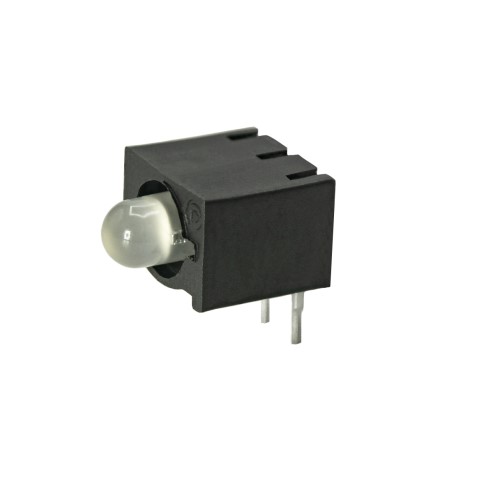

Image is representational - see mfr. specs

550-3507-010F

Dialight

550 Series 5 mm CBI R/G 3 Leaded Slope-back Housing Reverse Polarity ...

Datasheet
RoHS Non-Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 550-3507-010F is a 5mm red/green bi-color LED with a white diffused epoxy package designed for dual-color indicator applications. It features a three-lead configuration with a common cathode (pin 1), green anode (pin 2), and red anode (pin 3), allowing independent control of red and green colors or combined operation for mixed-color display. The LED exhibits peak wavelengths of 635 nm (red) and 583 nm (green) with luminous intensities of 2.1 mcd and 4.2 mcd respectively at 10 mA, and forward voltages of 2.6 V to 3.0 V (red) and 2.2 V to 3.0 V (green) at 20 mA. With a maximum continuous forward current of 30 mA, peak pulse current of 500 mA, and operating temperature range of -20°C to +100°C, this RoHS-compliant component is suitable for status indicators, control panels, and visual feedback systems requiring dual-color signaling in industrial and consumer electronics.

Search Keywords: 5503507010F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
550-3507-010F
Unit of Measure:
Per Each
RoHS:
No
HTS:
8541402000
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
BAG
Color Temperature:
N/A
Color:
Green/Red
Dominant Wavelength:
N/A
Category:
Standard LED
Dimension:
6.1(Max) x 9.14(Max) + 5 x 6.1(Max) mm

IN STOCK: 818

Can Ship immediately

MOQ for In Stock Qty: 25

MOQ for out of Stock Qty: 163

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
25
$1.70
50
$1.69
100
$1.68
163
$1.67
325
$1.27
488
$1.18
650 +
$1.15
Suppliers Standard Package
