556-1503-304F by dialight

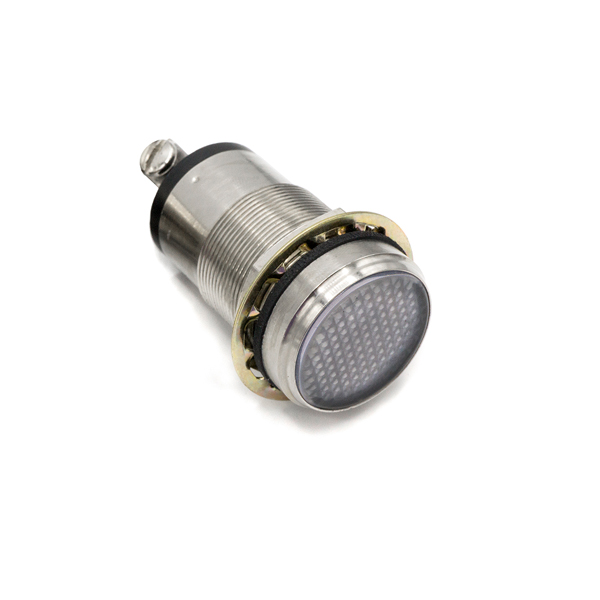

Image is representational - see mfr. specs

556-1503-304F

Dialight

The 556-1503-304F is a red LED panel mount indicator with a flat lens, designed for 12 VDC operation. ...

Datasheet
RoHS Non-Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 556-1503-304F is a 556 Series panel mount indicator designed for high-visibility signaling. This red LED indicator operates at 12 VDC, drawing a typical current of 95 mA to produce a luminous intensity of 22,000 mcd. It features a flat polycarbonate lens, a white nickel plated brass housing, and connects via 6-32 screw terminals. Designed for a 1.0-inch mounting hole, this durable indicator is IP66 and NEMA 4X rated, ensuring protection against dust and water in harsh environments. Common applications include instrument panels, safety systems, transportation, and industrial controls.

Search Keywords: 5561503304F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
556-1503-304F
Unit of Measure:
Per Each
RoHS:
No
HTS:
8541402000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Mounting:
Panel
Dimension:
46.23 x 28.5 mm
Type:
Uni-Color
Maximum Forward Voltage per Color:
N/A
Color:
Red
Peak Wavelength:
N/A
Lens Shape Type:
Circular
Lens Appearance:
N/A
Lens Dimensions:
N/A
Intensity:
N/A
Viewing Angle:
N/A
Maximum Forward Current:
N/A

IN STOCK: 29

Ships today, if you order in

Factory Lead-Time 22 Weeks

Price (USD)

Qty
Unit Price
1
$45.02
5
$43.53
10
$36.65
25
$36.37
50
$36.19
100
$32.03
250 +
$31.95
Log in for special pricing Click for Quote Price Match Request
