306-006-500-102 by edac

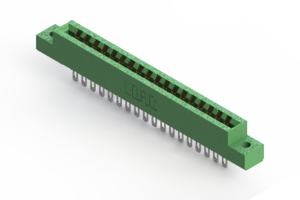

Image is representational - see mfr. specs

306-006-500-102

EDAC

Card Edge Connector - 6 Contacts - 0.156” (3.96mm) Pitch - Centre Row - 0.062” (1.57mm) Thick PCB - Board Mount ...

Datasheet
RoHS Compliant
BULK Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

306 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 6 Wire Hole type contacts with gold plating on the contact area. The tails are .087" x .015" (2.21mm x 0.38mm) thick and .282" (7.16mm) long in a Single Central Row formation. The Insulator is Green in color with Ø.128" (Ø3.25mm) Mounting Holes .

Search Keywords: 306006500102

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
EDAC
Part No:
306-006-500-102
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
BULK
Type:
Card Edge
Body Orientation:
Straight
Mounting:
Panel Mount
Termination Method:
Solder
Card Thickness:
1.37 to 1.78 mm
Pitch:
3.96 mm
Number of Contacts:
6
Operating Temperature:
-65 to 105 °C

IN STOCK: 0

Minimum Order Quantity: 25

Multiple: 25

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
25
$5.33
50
$5.06
100
$4.80
250 +
$4.56
Suppliers Standard Package
