SA1RV20 by electroswitch

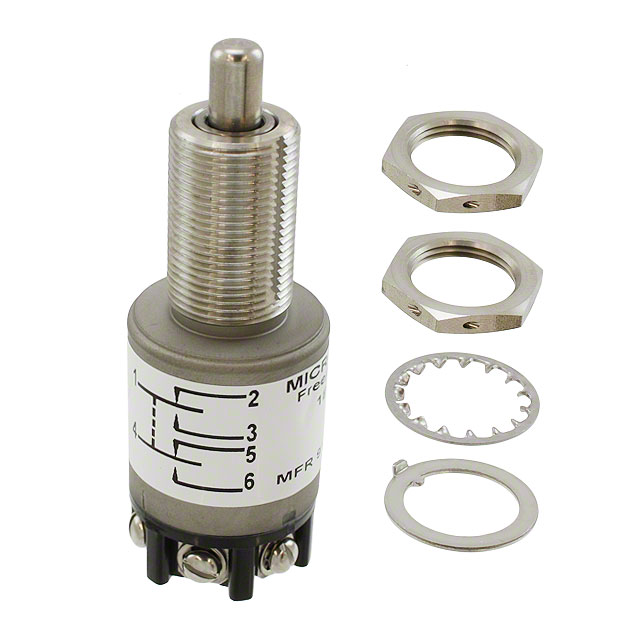

Image is representational - see mfr. specs

SA1RV20

Electroswitch

Switch, Push Button - SPST NO - 1.5A 125VAC/28VDC - Thru-Hole - Red - No Cap ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

SA1RV20 is an ultra-miniature normally open pushbutton switch with a round base designed for AC and DC circuit applications. The switch features gold-plated copper contacts and terminals, with a resistive rating of 0.75 amperes at 125 VAC normally open, and 1.0 ampere normally open for 15,000 operations. It has a pretravel of 0.015 to 0.050 inches, overtravel of 0.030 inches minimum, and an operating force of 8 ounces maximum, with 50,000 operations minimum for both electrical and mechanical life. The switch is mounted with an #8-40 nut and is ideal for applications requiring compact, reliable switching in control panels, instrumentation, and electronic equipment where space is limited.

Search Keywords: SA1RV20

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Electroswitch
Part No:
SA1RV20
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509031
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Panel Mount/Through Hole
Pole Throw Configuration:
SPST
Bushing Type:
Threaded
Switch Configuration:
N.O.
Contact Rating @ Voltage:
1.5A@28 VDC
Actuator Style:
Round Plunger
Illumination:
N/R
Terminal Type:
Quick Connect
Body Orientation:
Straight
Dimension:
6.35 x 6.35 x 19.3 mm

IN STOCK: 313

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
5
$11.09
25
$7.65
50
$7.33
100
$6.36
250
$6.17
500
$5.97
1,000
$5.94
2,500 +
$5.91
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

SW53AA1

Switch Access Push Button Switch Round Cap

SW53AA2

Switch Access Push Button Switch Round Cap
