M80-5001442

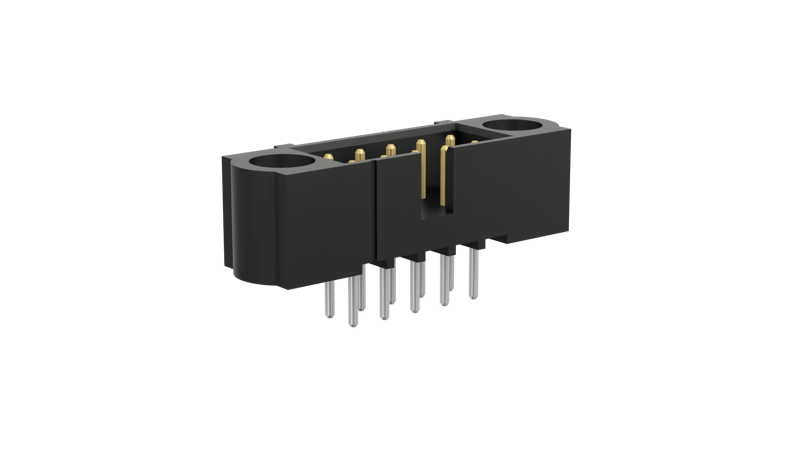

M80-5001442 is a 14-contact, double-row, male M80 series rectangular connector with a 2mm pitch and PC tail terminations. ...

Datasheet

RoHS Compliant

DESCRIPTION

The M80-5001442 is a 14-pin, double-row M80 series rectangular connector intended for use as a low-voltage connector in high-packing-density electronic equipment. This connector is rated for a current of up to 3.0A per contact (at 25°C with all contacts loaded) and a working voltage of 800V AC/DC. It features a gold finish on the contact area with 100% tin on the tails, ensuring reliable connection and solderability. Designed for durability with 500 mating cycles and an operating temperature range of -55°C to +125°C, it is suitable for board-to-board, cable-to-board, and cable-to-cable interconnections in demanding applications.

Product Highlights:

Potential Applications:

Search Keywords: M805001442

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Harwin

Part No:

M80-5001442

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536694040

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
