103SR12A-2 by honeywell
Image is representational - see mfr. specs

103SR12A-2

Honeywell

Honeywell Hall Effect Sensor 103SR12A-2, 40 mA, unipolar, 3-pin, panel mount, operating temperature -40 to 100 °C. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Hall effect sensors operate as analog transducers and return a voltage directly. These sensors vary their output voltage in response to a magnetic field. They are generally used in proximity switching, positioning, and current sensing. Potential applications of Hall Effect Sensors include speed detection, positioning and current sensing.

103SR12A-2 Hall Effect Sensor from Honeywell has PVC insulated conductors and jacket with adjustable mounting. This Honeywell Sensor is color coded and has 1 m jacketed cable. This Unipolar Hall Effect Sensor is also rugged and has current sourcing output.

Product Highlights:

  • Adjustable mounting
  • Current sourcing output
  • Rugged, Epoxy filled 14mm threaded plastic housing NEMA 3, 3R, 3S, 4, 12 and 13 requirements
  • 22 AWG, 1 m [39.4 in] jacketed cable, color coded, PVC insulated conductors and jacket

Search Keywords: 103SR12A2

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
103SR12A-2
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
85423919
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Magnetic Type:
Unipolar
Maximum Output Current:
40 mA
Mounting:
Panel
Output Type:
Vs-1.5 V
Output Driver:
NPN
Product Type:
Digital
Dimension:
25.4mm x 12mm dia
Typical Operating Supply Voltage:
6 to 24 V
Termination Type:
Wire Leads
Operating Temperature:
-40 to 100 °C
  Possible Replacement options available.  See Alternatives

IN STOCK: 0

MOQ for out of Stock Qty: 50

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
50
$420.90
100
$214.98
150
$146.33
200 +
$143.41
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Possible Replacement

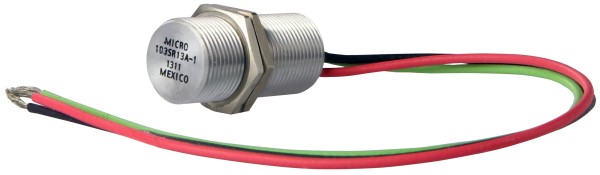

103SR13A-1
